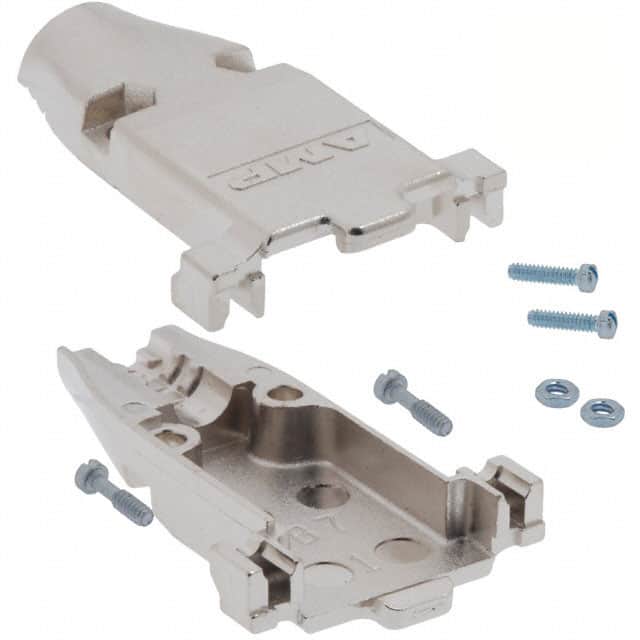

5745171-1 TE Connectivity 5745171-1 is a 9-position D-Sub backshell with 180° cable exit. It is shielded, made of metal and zinc alloy with nickel over copper plating, and includes mating screws and strain relief hardware.
Mfr Part #:

5745171-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5745171-1 is a 9-position D-Sub backshell with 180° cable exit. It is shielded, made of metal and zinc alloy with nickel over copper plating, and includes mating screws and strain relief hardware.
✓ Total Stock: 102 pcs

5745171-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745171-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

5745171-1 Description

Short technical summary and product information.

The TE Connectivity 5745171-1 is a two-piece D-Sub backshell designed for 9-position connectors. It features a 180° cable exit angle and is fully shielded to provide EMI/RFI protection. The backshell is constructed from metal and zinc alloy with a nickel over copper plating, giving it a silver finish and durable corrosion resistance.



Key specifications include integrated assembly hardware and strain relief for secure cable management. The hardware includes 4-40 mating screws for robust connection. This backshell is suitable for use with round cables and supports standard D-Sub applications.



Compliance data indicates RoHS3 compliance, REACH unaffected status, and MSL level 1 (unlimited). This product is part of TE Connectivity's range of D-Sub accessories.

5745171-1 Quick Information

Product Type: D-Sub Backshell
Canonical Name: TE Connectivity D-Sub Backshell, 9 Positions, 180° Cable Exit, Shielded, Metal, Zinc Alloy, Silver
Subcategory: Two Piece Backshell

5745171-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745171-1 Features

  • 9-position D-Sub backshell with 180° cable exit.
  • Shielded design for EMI/RFI protection.
  • Metal and zinc alloy construction with nickel plating.
  • Includes assembly hardware and strain relief.
  • Features 4-40 mating screws for secure connection.

5745171-1 Applications

  • Used in cable assemblies for D-Sub connectors.
  • Provides strain relief and shielding for signal integrity.
  • Suitable for industrial and commercial electronic systems.

5745171-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this backshell accommodate?

9 positions.

What is the cable exit angle?

180°.

Is this backshell shielded?

Yes, it is shielded.

What materials are used in the construction?

Metal and zinc alloy with nickel over copper plating.

What hardware is included?

Assembly hardware, strain relief, and mating screws 4-40.

What type of cable is compatible?

Round cable.

What is the accessory type?

Two piece backshell.
