| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| ELV | |
| Flange Feature | |
| Halogen Content | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Size, Connector Layout | |
| Solder Process Capability | |
| Termination | |
| Termination Style |

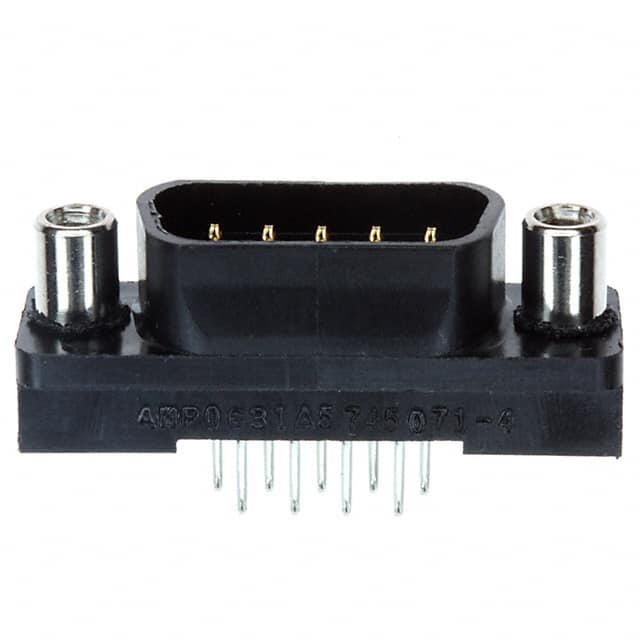

The TE Connectivity 5745071-4 is a 9-position D-Sub plug connector from the HD-20 series. It features male pins arranged in 2 rows and is designed for through hole mounting with solder termination. The connector has a shell size of 1 (DE, E) and includes a mating side female screwlock (4-40) flange feature for secure connection.
Electrical rating is 6A per contact. The contact finish is gold flash, suitable for signal applications. The connector is rated UL94 V-0 for flammability and is wave solder capable to 265°C.
This part is compliant with EU RoHS (with exemptions), EU ELV, and China RoHS. It is not low halogen and contains lead above threshold per REACH SVHC.
Plug, Male Pins; D-Sub style.
9 positions arranged in 2 rows.
Through hole mounting with solder termination.
6A per contact.
Gold flash.
UL94 V-0.
