| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

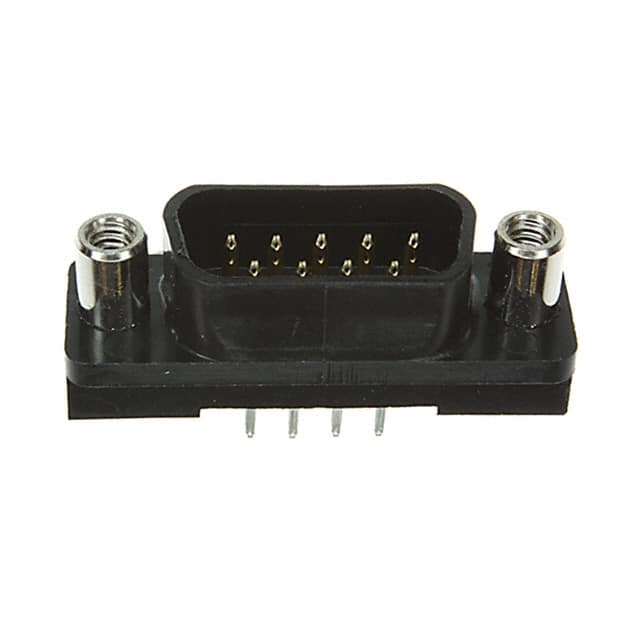

The TE Connectivity 5745071-2 is a D-Sub connector plug with 9 positions arranged in 2 rows. It features a standard shell size of 1 (DE, E) and is designed for through-hole mounting with solder termination. The contacts are male pins with a gold finish, providing reliable signal transmission. The connector is rated for a current of 6 A and is housed in a material with UL94 V-0 flammability rating, ensuring suitability for various electronic applications.
This plug includes a flange feature with mating side female screwlock (4-40) for secure connection. The gold contact finish offers good corrosion resistance and low contact resistance, making it suitable for environments where signal integrity is important. The through-hole mounting allows for robust mechanical attachment to printed circuit boards.
As a standard D-Sub connector, it is commonly used in data communication, industrial control, and computer peripheral interfaces. The 9-position configuration is typical for serial communication protocols such as RS-232. The connector's construction and ratings are based on the provided specifications, ensuring a factual description of its capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.03 | $10.03 |
| 10+ | $8.21 | $8.21 |
| 17+ | $7.81 | $7.81 |
| 51+ | $7.59 | $7.59 |
| 102+ | $7.23 | $7.23 |
| 255+ | $6.78 | $6.78 |
| 510+ | $6.45 | $6.45 |
| 1,003+ | $6.15 | $6.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
6 A.
Through hole.
Solder.
Gold.
Shell size 1 (DE, E).
UL94 V-0.
