| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

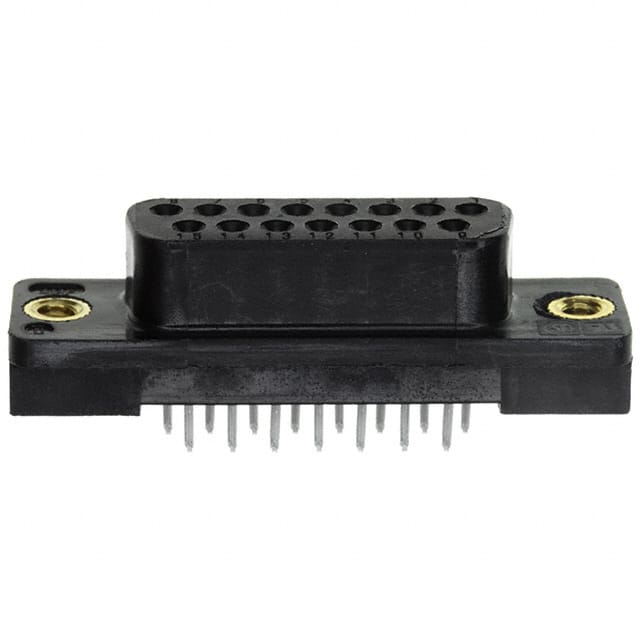

This TE Connectivity D-Sub receptacle connector (5745057-4) features 15 positions arranged in 2 rows with female socket contacts designed for signal applications. The connector uses through hole solder termination and has a shell size of 2 (DA, A) with a flange feature of Housing/Shell (4-40).
Electrically, the connector is rated for 6A continuous current. Contact finish is gold with a thickness of 30.0 microinches (0.76 µm) for reliable low-level signal connections.
The insulation is rated UL94 V-0 for flammability resistance. Environmental compliance markings include RoHS3, MSL 1 (unlimited), and REACH unaffected, though these are unverified.
Mounting is through hole with solder termination, typical for board-to-board or cable-to-board D-Sub applications. Standard package quantity and operating temperature range are not specified in available data.
15 positions arranged in 2 rows.
6 A per contact.
Through hole with solder termination.
Gold, 30.0 microinches (0.76 µm) thickness.
2 rows.
UL94 V-0.
RoHS3 Compliant, MSL 1 (Unlimited), REACH Unaffected (all unverified).
