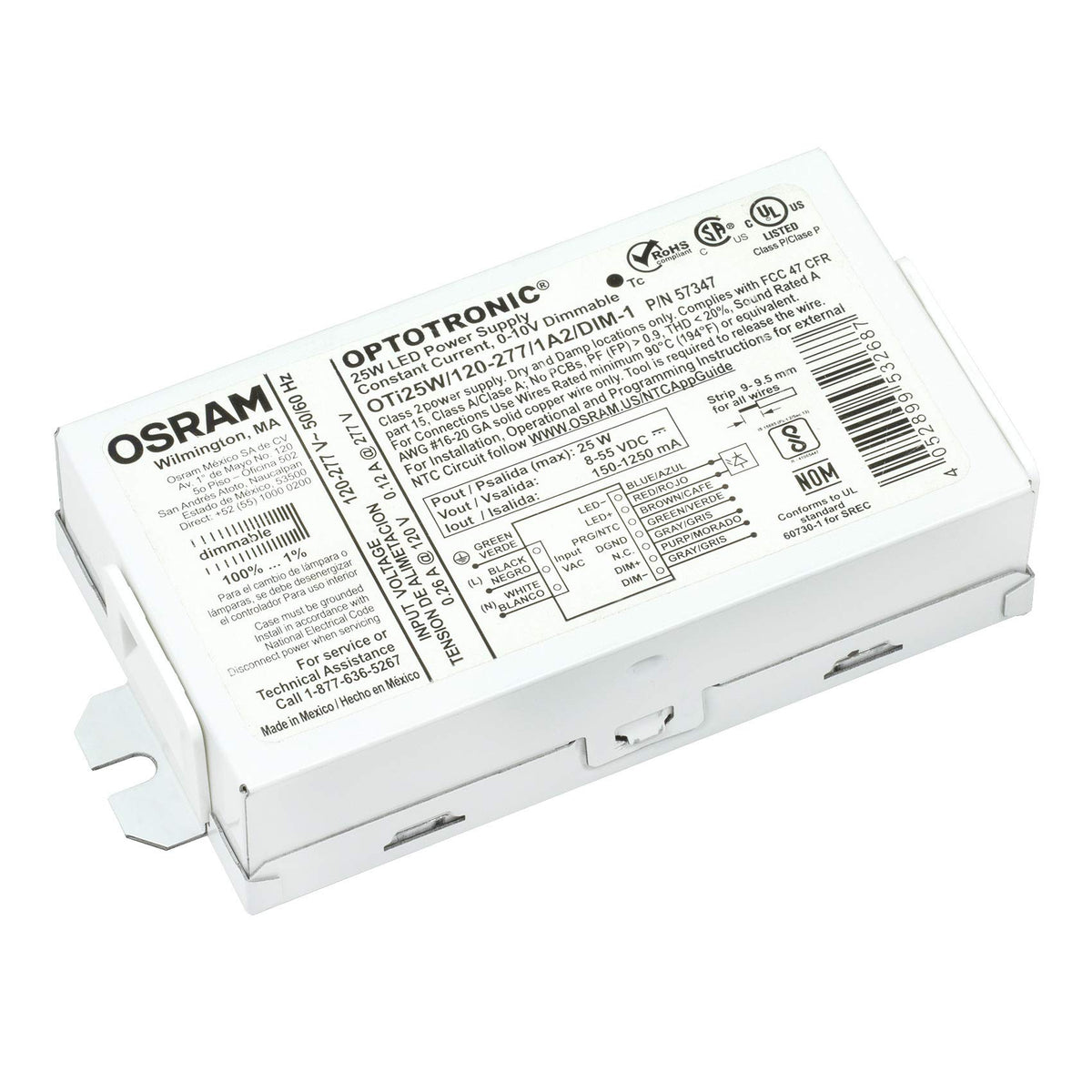

The OSRAM 57347 is a programmable, constant current LED driver from the OPTOTRONIC family. It delivers 25W of power with a universal input voltage range of 120-277VAC.
This driver features a programmable output current between 150-1250mA with 1mA resolution, allowing for precise matching to LED loads. It supports dimming down to 1% using a standard 0-10V dimming interface, enabling seamless integration with dimmers, sensors, and light management systems. Programmable features include constant lumen maintenance, end-of-life indication, LED thermal protection, and dim-to-off functionality.
The unit comes in a standard industry housing measuring 5.0" x 2.4" x 1.2" and is available with mounting feet or PEM studs for simplified installation. It also includes a dedicated auxiliary DC output for integrating fixture sensors.
Applications include downlights, in-grade fixtures, recessed troffers, and wall washing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 120-277 VAC.
The output current is programmable between 150-1250 mA.
The maximum wattage is 25W.
Yes, it supports dimming down to 1% using a 0-10V interface.
Features include constant lumen maintenance, end-of-life indication, LED thermal protection, soft start, and dim-to-off.
The dimensions are 5.0" x 2.4" x 1.2".
