| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | 23-May-22 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

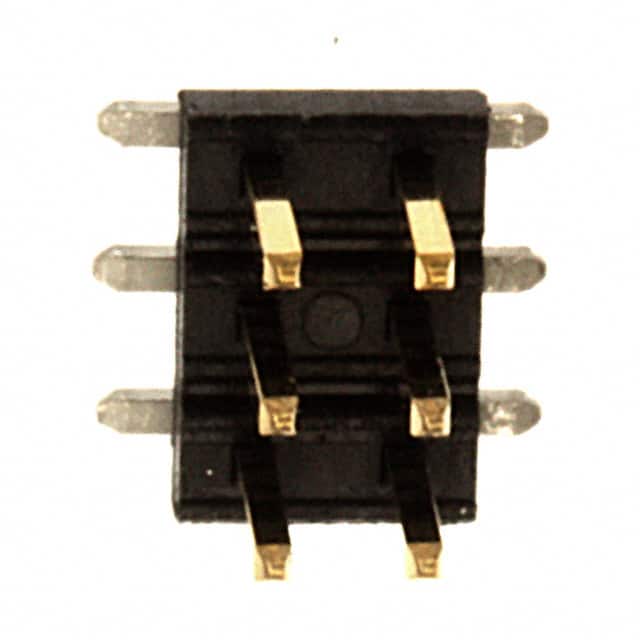

The 57202-G52-03LF from Amphenol ICC is a 6-position, 2-row unshrouded header designed for board-to-board connections. The connector features a 2.00mm pitch and 2.00mm row spacing, with surface mount solder termination. The male square pins are made of copper alloy with a tin finish (30µin thickness) and a contact length of 4.00mm. The header is rated for 2A of current and 200V (AC/DC). The housing is made of black thermoplastic with UL94 V-0 flammability rating. The unshrouded design allows for push-pull mating. This connector is suitable for applications requiring compact, low-profile interconnects between PCBs. The surface mount package enables automated assembly. The part is RoHS and REACH compliant (unverified). The contact shape is square, and the insulation material is thermoplastic. This header is typically used in industrial, consumer, and data communication equipment where a 2mm pitch board-to-board connector is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.12 | $2.12 |
| 10+ | $1.80 | $1.80 |
| 100+ | $1.74 | $1.74 |
| 250+ | $1.57 | $1.57 |
| 500+ | $1.44 | $1.44 |
| 1,000+ | $1.30 | $1.30 |
| 5,000+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded.
2.00mm (0.079").
2A (AC/DC).
200V (AC/DC).
Surface mount.
No, it is unshrouded.
2 rows.
