| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

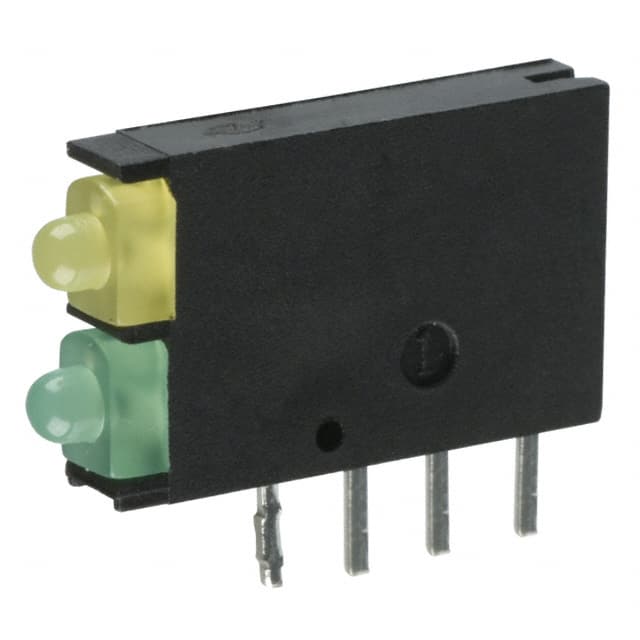

This Dialight 5710132F is a bi-level LED circuit board indicator (CBI) with a configuration of 2 High. It features a diffused and tinted lens, with one green LED and one yellow LED.
The indicator operates with a current of 20mA and a voltage rating of 2.1V. The green LED has a typical luminous intensity of 10mcd at a wavelength of 565nm, while the yellow LED has a typical luminous intensity of 8mcd at a wavelength of 585nm. Both LEDs have a viewing angle of 38 degrees.
Designed for through-hole, right-angle mounting, this component is suitable for various electronic applications where visual indication is required on a circuit board. The CBI series from Dialight offers a range of indicator solutions for different mounting and configuration needs.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified in the database.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating for the Dialight 5710132F is 20mA.
The LED indicator has a voltage rating of 2.1V and a current rating of 20mA.
The Dialight 5710132F features one green LED and one yellow LED.
The green LED has a luminous intensity of 10mcd, and the yellow LED has a luminous intensity of 8mcd.
The viewing angle for the LEDs is 38 degrees.
The Dialight 5710132F is designed for through-hole, right-angle mounting.
The configuration is 2 High, indicating two LEDs stacked vertically.
