| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,034 pcs
|
4034 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,034 pcs
|
4034 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

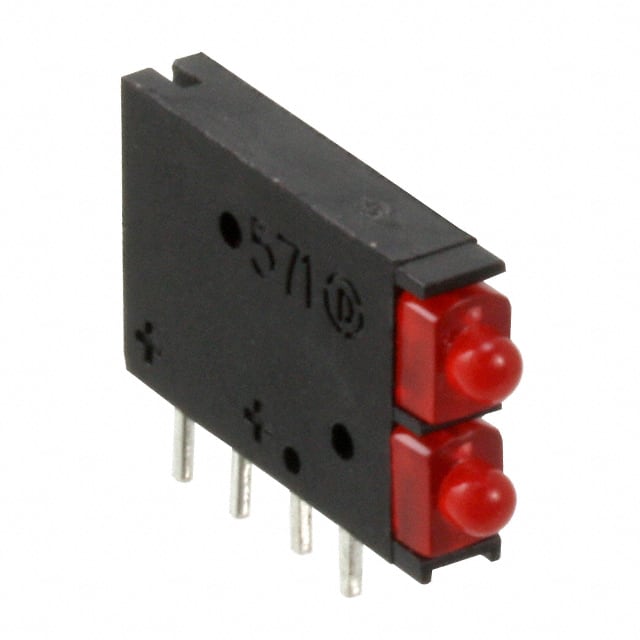

The Dialight 5710111100F is a bi-level LED circuit board indicator designed for reliable visual signaling on PCBs. This component features two high-intensity red LEDs, each with a typical forward voltage of 2V and a current rating of 20mA, producing a luminous intensity of 12.6mcd.
The indicator has a peak wavelength of 635nm and a viewing angle of 38 degrees. The lens is diffused and tinted, with a round, domed top style measuring 2.00mm in diameter. It is designed for through-hole mounting with a right-angle orientation, making it suitable for space-constrained applications where vertical board space is limited.
This LED indicator is packaged in bulk and is RoHS3 compliant. Its compact design and clear visual output make it a practical choice for status indication in various electronic devices and systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V.
The typical luminous intensity is 12.6mcd.
It is mounted through hole with a right-angle orientation.
The indicator has two red LEDs.
The peak wavelength is 635nm.
