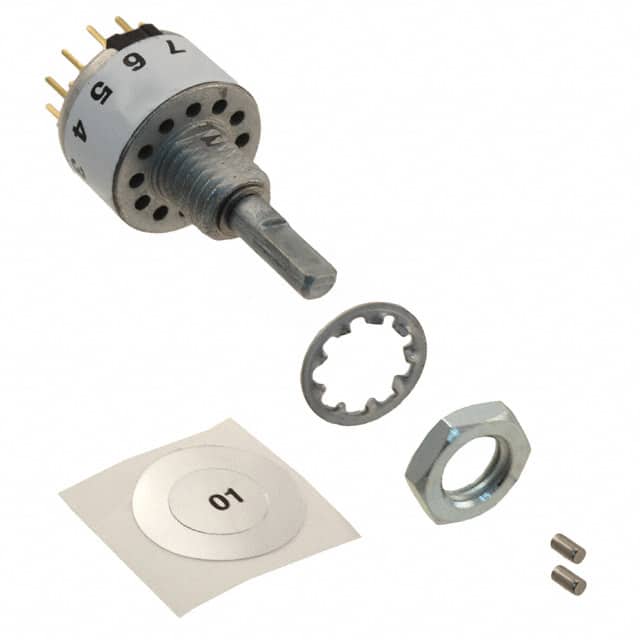

56DP30-01-2-AJN The Grayhill 56DP30-01-2-AJN is a 1-deck rotary switch with 2 poles and an adjustable stop type. It features a 30° angle of throw and a maximum rating of 200 mA.
Mfr Part #:

56DP30-01-2-AJN

Available from 2 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill 56DP30-01-2-AJN is a 1-deck rotary switch with 2 poles and an adjustable stop type. It features a 30° angle of throw and a maximum rating of 200 mA.
✓ Total Stock: 264 pcs
$ Price Range: $0.75

56DP30-01-2-AJN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
132 pcs
On Request
132 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
132 pcs
On Request
132 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

56DP30-01-2-AJN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Angle of Throw
Circuit per Deck
Contact Finish
Contact Material
Contact Timing
Contact Type
Current Rating (Amps)
Depth Behind Panel
Index Stops
Mounting Type
Number of Decks
Number of Poles
Number of Poles per Deck
Number of Positions
Shaft Diameter
Termination Style
Voltage Rating
View Similar Products (0)

56DP30-01-2-AJN Description

Short technical summary and product information.

The Grayhill 56DP30-01-2-AJN is a single-deck rotary switch designed for industrial quality at an economical price. It offers an angle of throw of 30 degrees and supports adjustable index stops, allowing for flexible positioning.



This switch is rated for a maximum of 200 mA (AC/DC) and operates at 30 V. It features non-shorting contact timing and a brass contact material with silver plating. The actuator is flatted with a diameter of 3.17mm and a length of 9.53mm.



Designed for panel mounting and through-hole termination, the 56DP30-01-2-AJN has a depth behind the panel of 9.58mm. It has a mechanical life of 25,000 cycles. The switch is RoHS3 Compliant, MSL 1, and REACH Unaffected.



Key specifications include 2 poles per deck, with a circuit configuration of DP6T. The shaft diameter is 0.125 inches, and the shaft stop strength is 7.5 lbf in. This model requires a minimum distance behind the panel.

56DP30-01-2-AJN Quick Information

Product Type: Rotary Switch
Series: 56
Canonical Name: Grayhill 56DP30-01-2-AJN Rotary Switch

56DP30-01-2-AJN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

56DP30-01-2-AJN Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

56DP30-01-2-AJN Features

  • Single deck rotary switch design.
  • 2 poles with 30° angle of throw.
  • Adjustable index stops for flexibility.
  • Rated for 200mA at 30V.
  • Panel mount, through hole termination.

56DP30-01-2-AJN Applications

  • Ideal for control panel selection.
  • Suitable for industrial equipment.
  • Used in test and measurement devices.
  • Applicable in custom electronic assemblies.

56DP30-01-2-AJN FAQs

6 frequently asked questions generated from this part’s specifications.
What is the angle of throw for the 56DP30-01-2-AJN rotary switch?

The angle of throw is 30 degrees.

What is the maximum current rating for this Grayhill rotary switch?

The maximum switch rating is 200 mA.

How many poles does the 56DP30-01-2-AJN have?

It has 2 poles per deck.

What type of mounting is used for this rotary switch?

It uses panel mount, through hole mounting.

What is the termination style of the 56DP30-01-2-AJN?

The termination style is PC Mount.

Is the 56DP30-01-2-AJN RoHS compliant?

Yes, it is RoHS3 Compliant.
