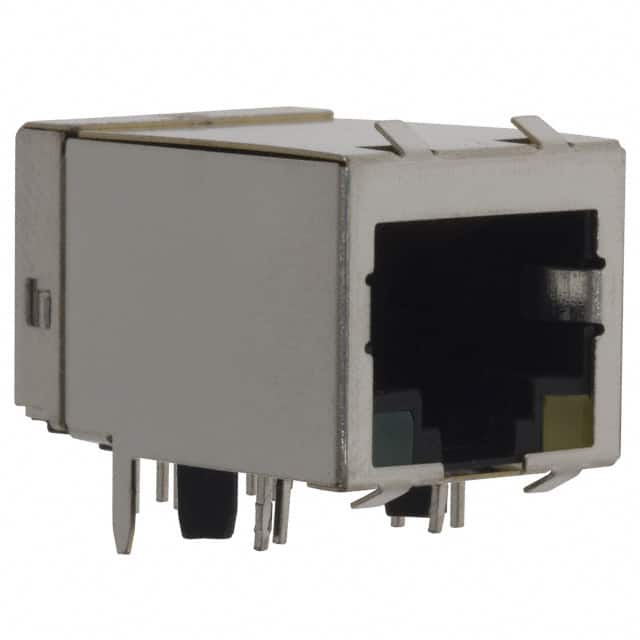

569564-1 TE Connectivity 569564-1 is a through-hole, right-angle modular connector jack with 8P8C (RJ45, Ethernet) configuration, shielded with EMI finger, and includes a board guide.
Mfr Part #:

569564-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 569564-1 is a through-hole, right-angle modular connector jack with 8P8C (RJ45, Ethernet) configuration, shielded with EMI finger, and includes a board guide.
✓ Total Stock: 4,500 pcs

569564-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

569564-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

569564-1 Description

Short technical summary and product information.

The TE Connectivity 569564-1 is a modular connector jack designed for Ethernet applications. It features 8 positions with 8 contacts (8p8c, RJ45), a single port, and a single row configuration. The connector is mounted through-hole and oriented at a right angle (900b0), making it suitable for edge-mounted or low-profile designs. Termination is via solder contacts, ensuring reliable electrical connections in PCB assembly.



This jack is fully shielded with an EMI finger, providing protection against electromagnetic interference, critical for maintaining signal integrity in data communication environments. It also includes a board guide feature to facilitate accurate alignment during soldering. The contact material is phosphor bronze with a gold finish, offering good conductivity and corrosion resistance.



The connector features a green and yellow LED indicator for port status or activity signaling. It is rated Cat3, suitable for network applications up to 16 MHz. The tab direction is down, typical for right-angle RJ45 jacks. This component is RoHS3 and REACH compliant, though compliance data is unverified with low confidence.

569564-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Connector Jack 8p8c (RJ45, Ethernet) Through Hole Right Angle Shielded
Subcategory: RJ45 Jack

569564-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

569564-1 Features

  • Gold-plated phosphor bronze contacts provide reliability.
  • Shielded design with EMI finger for interference protection.
  • Right angle orientation for space-constrained PCB layouts.
  • Integrated green-yellow LED for port status indication.
  • Cat3 rated for 16 MHz Ethernet applications.

569564-1 Applications

  • Used in network interface cards and routers.
  • Ideal for telecommunications and data communication equipment.
  • Applicable in industrial control and automation panels.
  • Suitable for PoE (Power over Ethernet) applications up to Cat3.
  • Common in consumer and enterprise Ethernet devices.

569564-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What connector type does the 569564-1 use?

The 569564-1 is a modular connector jack (RJ45, Ethernet) with 8 positions and 8 contacts (8p8c).

What is the mounting type of the 569564-1?

The 569564-1 has a through-hole mounting type.

What orientation does the 569564-1 have?

The 569564-1 has a right angle orientation (90 degrees).

Is the 569564-1 shielded?

Yes, the 569564-1 is shielded and includes an EMI finger.

What LED colors are available on the 569564-1?

The 569564-1 features a green and yellow LED indicator.

What is the contact finish on the 569564-1?

The contact finish is gold with phosphor bronze contact material.
