| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Length | |
| Actuator Material | |
| Automotive Grade | |
| Contact Material | |
| Country of Origin | |
| Failure Rate | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Tape & Reel | |
| Terminal Type | |
| Termination Style | |
| Width |

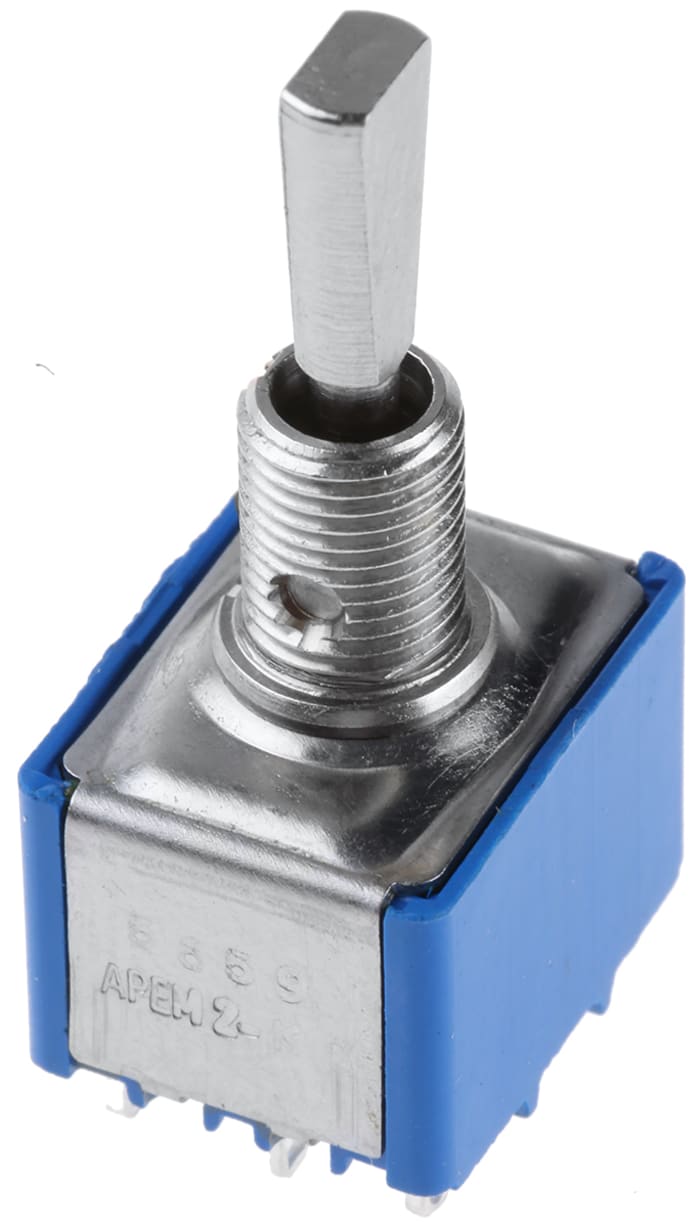

This APEM 5659A9 toggle switch is a panel-mount component designed for reliable electrical switching applications. It features a 3PDT (Triple Pole, Double Throw) contact configuration, allowing for complex circuit control with its On-Off-On operational states. The switch is equipped with solder terminals for secure connections.
With a contact current rating of 4A, it is suitable for various electrical loads. The AC voltage rating is 250V AC, and the DC voltage rating is 30V DC, providing versatility for different power systems. The switch operates within a temperature range of -40°C to 85°C, ensuring performance in diverse environmental conditions. Its mechanical life is rated for 100,000 operations, indicating durability.
The panel mount design requires a 6.5 mm cutout, and the switch features a brass actuator and a Diallyl Phthalate case. Approvals include CECC, CSA, RoHS, and UL, signifying compliance with industry standards. The series is designated as 5000, and it originates from France.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 5659A9 toggle switch has a 3PDT contact configuration.
The APEM 5659A9 toggle switch operates in On-Off-On states.
The APEM 5659A9 toggle switch is rated for a maximum AC voltage of 250V ac.
The minimum operating temperature for the APEM 5659A9 toggle switch is -40°C.
The APEM 5659A9 toggle switch has a mechanical life of 100,000 operations.
