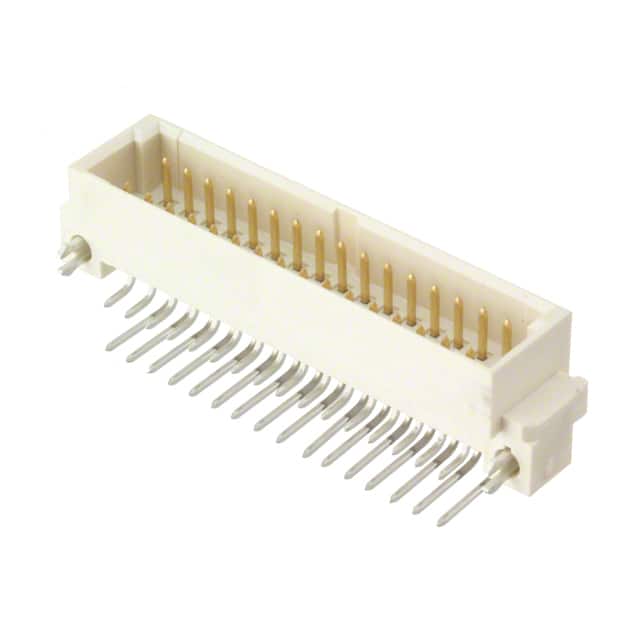

5650978-5 DIN 41612 plug connector with 48 positions (32 loaded), 3 rows, 2.54mm pitch, gold contact finish, through hole right angle mounting, and board lock feature.
Mfr Part #:

5650978-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
DIN 41612 plug connector with 48 positions (32 loaded), 3 rows, 2.54mm pitch, gold contact finish, through hole right angle mounting, and board lock feature.
✓ Total Stock: 1,459 pcs
$ Price Range: $4.61 - $8.20

5650978-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
1,459 pcs
On Request
1459 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5650978-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Lead Spacing
Level, Class
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Style
Tape & Reel
Termination
View Similar Products (0)

5650978-5 Description

Short technical summary and product information.

The TE Connectivity 5650978-5 is a DIN 41612 plug connector with male pins. It features 48 positions with 32 positions loaded, arranged in 3 rows at a 2.54mm pitch. The contacts are finished with gold for reliable conductivity. The connector is designed for through hole right angle mounting and includes a board lock feature for secure attachment. Termination is via solder. This connector is suitable for backplane applications requiring high-density interconnections. It is rated as performance level class 2.

5650978-5 Quick Information

Product Type: DIN 41612 Connector
Series: C/2
Canonical Name: DIN 41612 Plug, Male Pins, 48 Positions (32 Loaded), 3 Rows, 2.54mm Pitch, Through Hole, Right Angle, Gold Contact Finish, Board Lock
Subcategory: Plug, Male Pins

5650978-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5650978-5 Estimated Pricing

Qty Low High
1+ $8.20 $8.20
10+ $6.49 $6.49
30+ $5.49 $5.49
120+ $5.48 $5.48
270+ $4.88 $4.88
1,020+ $4.61 $4.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

5650978-5 Features

  • 48 positions with 32 loaded.
  • 3 rows at 2.54mm pitch.
  • Gold contact finish for reliability.
  • Through hole right angle mounting.
  • Board lock for secure attachment.

5650978-5 Applications

  • Used in backplane interconnection applications.
  • Suitable for DIN 41612 standard systems.

5650978-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5650978-5 connector have?

48 positions total, with 32 positions loaded.

What is the pitch of the connector?

2.54mm (0.100 inches).

What is the mounting type?

Through hole, right angle.

How many rows does the connector have?

3 rows.

What is the contact finish?

Gold.

Does the connector have any special features?

Yes, it includes a board lock feature.

What is the performance class?

Class 2.
