| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination |

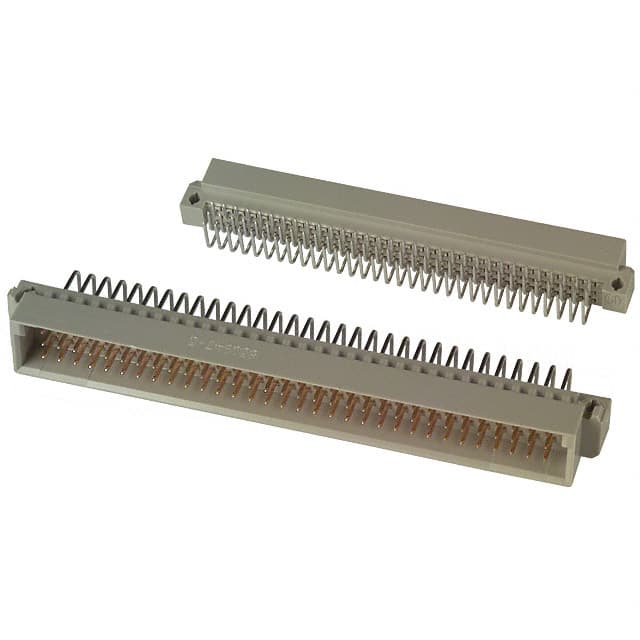

The TE Connectivity 5650947-5 is a DIN 41612 Type C plug connector designed for backplane and rack-and-panel applications. It features 96 male pin positions arranged in three rows with a standard 2.54mm pitch. The connector is rated Class 2 per DIN 41612 specifications, ensuring reliable performance in industrial environments.
The right angle through hole mounting allows for efficient PCB layout, and the solder termination provides secure electrical connections. Gold plating on the contacts ensures corrosion resistance and reliable signal integrity over multiple mating cycles.
DIN 41612 connectors are widely used in telecommunications, data processing, and industrial control systems. The Type C variant offers a high density of 96 contacts, suitable for complex backplane architectures. The 3-row configuration allows for efficient routing of signals, and the right angle orientation facilitates perpendicular card-to-backplane connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.34 | $8.34 |
| 10+ | $7.09 | $7.09 |
| 30+ | $6.56 | $6.56 |
| 60+ | $6.25 | $6.25 |
| 120+ | $5.95 | $5.95 |
| 270+ | $5.62 | $5.62 |
| 510+ | $5.37 | $5.37 |
| 1,020+ | $5.12 | $5.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
96 positions.
2.54mm (0.100 inches).
Through hole, right angle.
3 rows.
Gold.
Solder termination.
Class 2.
