| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

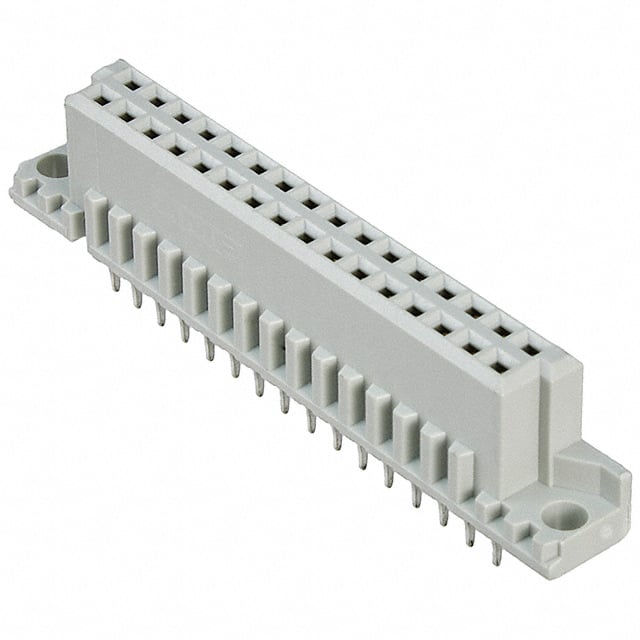

The TE Connectivity 5650864-5 is a DIN 41612 Style B receptacle with female sockets, providing 32 positions arranged in 2 rows. It features a 2.54mm (0.100") pitch, making it suitable for standard backplane and board-to-board interconnect applications.
The connector uses press-fit termination with a through-hole mounting type, enabling reliable solderless connections in high-density backplane systems. The press-fit design helps reduce assembly time and improves mechanical retention.
With all positions loaded, this receptacle offers full signal routing capability for 32-pin configurations. It is classified as Level, Class 2, indicating a standard quality level suitable for general industrial and commercial electronic equipment.
This DIN 41612 connector is designed for use in backplane systems where robust, high-density interconnects are required. Its 2.54mm pitch aligns with common PCB layout standards, facilitating straightforward board design and integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.42 | $7.42 |
| 10+ | $6.31 | $6.31 |
| 40+ | $5.44 | $5.44 |
| 120+ | $5.29 | $5.29 |
| 280+ | $4.98 | $4.98 |
| 520+ | $4.77 | $4.77 |
| 1,000+ | $4.55 | $4.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets, DIN 41612 Style B.
It has 32 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100").
It uses press-fit termination with through-hole mounting.
