| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,640 pcs
|
2640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

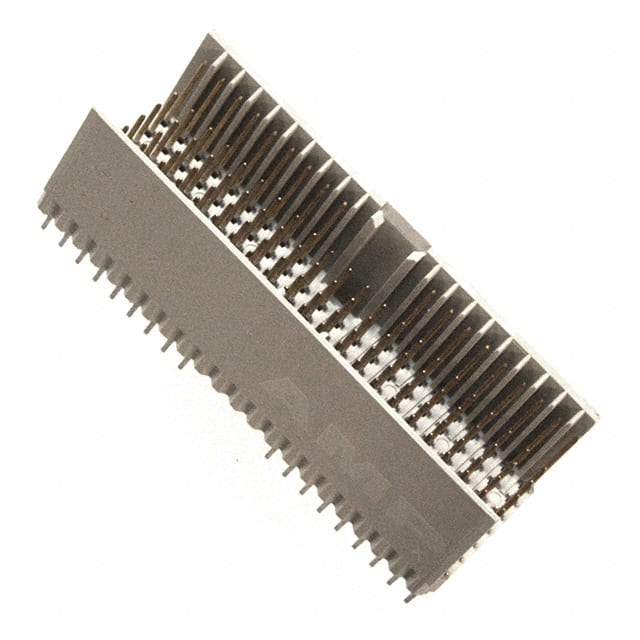

The TE Connectivity 5646533-1 is a hard metric header connector from the Z-Pack 2mm HM family, designed for high-density backplane interconnections. It features a male pin header configuration with 146 total positions, including 110 signal contacts and 36 ground contacts, all loaded.
This connector has a 2.00mm pitch and a 5+2 row arrangement, with through-hole mounting and press-fit termination for reliable, solderless board attachment. The contacts are finished with 30 microinches of gold over the mating area, ensuring excellent conductivity and corrosion resistance.
As part of the Z-Pack 2mm HM system, it supports board-to-board connections in telecom, data center, and industrial computing equipment. The connector is RoHS3 compliant and unaffected by REACH restrictions.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.06 | $12.06 |
| 11+ | $10.18 | $10.18 |
| 33+ | $9.42 | $9.42 |
| 55+ | $9.09 | $9.09 |
| 110+ | $8.66 | $8.66 |
| 253+ | $8.16 | $8.16 |
| 506+ | $7.77 | $7.77 |
| 1,001+ | $7.41 | $7.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
146 positions total, comprising 110 signal contacts and 36 ground contacts. All positions are loaded.
2.00mm (0.079 inches).
Through-hole mounting with press-fit termination.
Gold contact finish with 30 microinches (0.76µm) thickness.
Style AB 22 with 5 signal rows plus 2 shield/ground rows.
