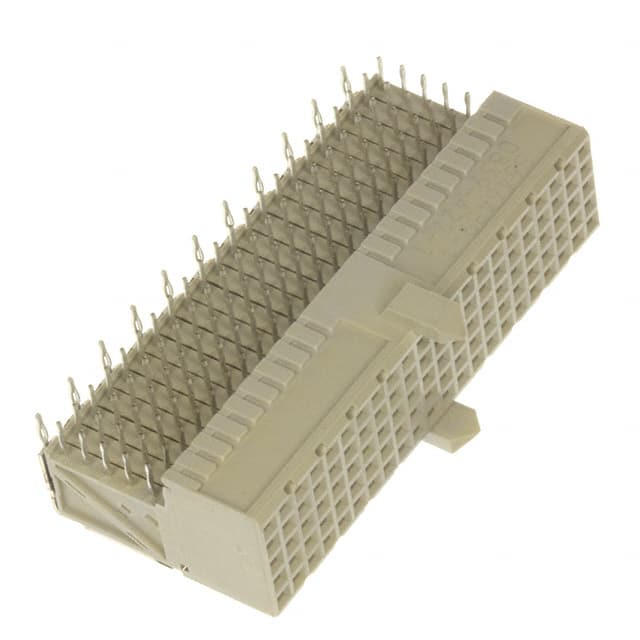

The TE Connectivity 5646489-1 is a 110-position, 2mm centerline hard metric backplane receptacle designed for mezzanine architectures. It features a 5-row by 22-column configuration with all positions loaded. The connector uses press-fit termination for reliable solderless board attachment and offers a right-angle PCB mount orientation.
This Z-PACK 2mm HM receptacle supports data rates up to 1 Gb/s with a standard crosstalk version and a maximum contact current rating of 1.5 A. Contacts are made of phosphor bronze with a performance-based mating area plating and tin-plated termination areas. The housing is gray polyester-glass filled with a UL 94V-0 flammability rating.
The connector is shielded and includes a multi-purpose center mating alignment for secure engagement. It is packaged in tubes of 10 units. Compliant with RoHS, REACH, EU ELV, and China RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.04 | $20.04 |
| 12+ | $16.81 | $16.81 |
| 36+ | $15.56 | $15.56 |
| 60+ | $15.01 | $15.01 |
| 108+ | $14.40 | $14.40 |
| 252+ | $13.56 | $13.56 |
| 504+ | $12.92 | $12.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 5646489-1 from TE Connectivity.
This connector has 110 positions arranged in 5 rows and 22 columns.
The contact pitch is 2 mm.
The maximum contact current rating is 1.5 A.
The operating temperature range is -55°C to 125°C.
This connector is mounted via board edge, through hole, right angle with press-fit termination.
