| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,656 pcs
|
1656 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

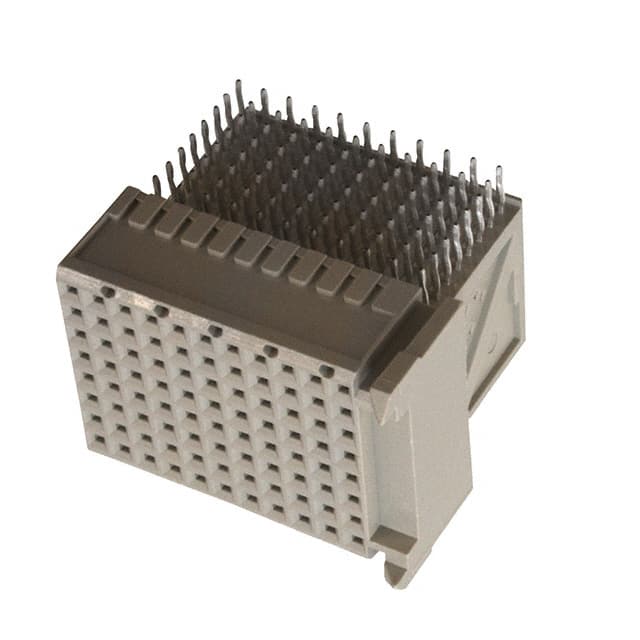

The TE Connectivity 5646446-1 is a Z-PACK 2mm HM hard metric backplane connector receptacle. It has 88 female socket contacts with all positions loaded, arranged in 8 rows at a 2.00mm pitch. The connector uses press-fit termination for solderless board attachment and features a gold contact finish with 30.0µin thickness for corrosion resistance and reliable signal integrity.
This receptacle is designed for board edge, through hole, right angle mounting, making it suitable for dense backplane and midplane applications in telecommunications, data communications, and industrial systems. The F 11 connector style indicates a specific keying and shielding variant within the Z-PACK 2mm HM family.
The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability. The gold-plated contacts ensure low contact resistance and durability over multiple mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.49 | $17.49 |
| 20+ | $14.16 | $14.16 |
| 40+ | $13.48 | $13.48 |
| 60+ | $13.10 | $13.10 |
| 100+ | $12.64 | $12.64 |
| 260+ | $11.81 | $11.81 |
| 500+ | $11.28 | $11.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5646446-1 has 88 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
It uses board edge, through hole, right angle mounting with press-fit termination.
The contacts have a gold finish with a thickness of 30.0 microinches (0.76 micrometers).
The connector has 8 rows.
