| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector System | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Max) | |
| Data Rate | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mating Alignment Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Termination | |
| UL Flammability Rating |

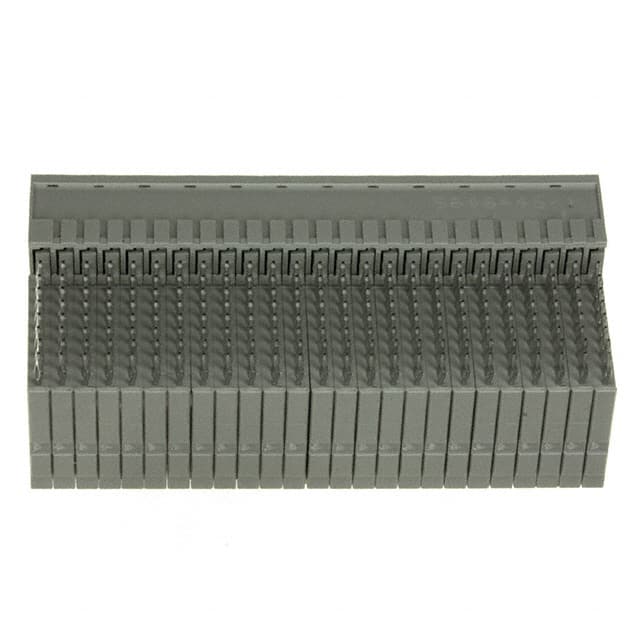

The TE Connectivity 5646445-1 is a Z-PACK 2mm HM hard metric backplane connector receptacle designed for board-to-board mezzanine applications. It offers 200 signal positions arranged in 8 rows and 25 columns with a 2.00mm pitch, providing high-density interconnection in backplane systems.
Electrically, the connector supports data rates up to 1 Gb/s and a maximum current rating of 1.5 A per contact. It operates over a temperature range of -55°C to 125°C. Contacts are made of phosphor bronze with a gold mating area plating of 0.76µm thickness and tin termination plating.
Mechanically, the receptacle is right angle mounted to the board using press-fit termination, suitable for board edge through-hole mounting. The gray polyester GF housing has a UL 94V-0 flammability rating. The shielded design is not provided, as this is a signal-only component.
The connector is packaged in a tube of 10 units. It is compliant with RoHS, EU ELV, and China RoHS directives. This part is ideal for telecommunications, data communications, and industrial backplane systems requiring reliable hard metric interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.94 | $21.94 |
| 10+ | $18.64 | $18.64 |
| 30+ | $17.25 | $17.25 |
| 50+ | $16.64 | $16.64 |
| 100+ | $15.85 | $15.85 |
| 250+ | $14.86 | $14.86 |
| 500+ | $14.15 | $14.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 positions.
2.00mm.
1.5 A.
Board edge, through hole, right angle press-fit.
≤1 Gb/s.
-55°C to 125°C.
Yes, it is RoHS compliant.
