Mfr Part #:

5646

Mfr Name: APEM Inc.

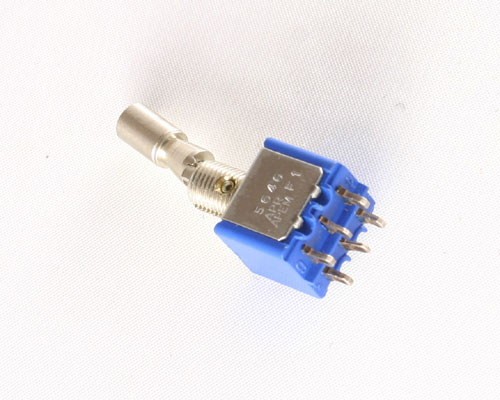

The APEM 5646 is a miniature toggle switch featuring a DPDT circuit with an ON-OFF-ON function. It is designed for solder termination.

✓ Total Stock: 3 pcs

$ Price Range: $0.75

5646 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

5646 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	APEM Inc.
Mounting Type	Solder
Number of Positions	2
SVHC Present	Not Present
Switch Circuit	ON-OFF-ON
Switch Function	DPDT

View Similar Products (0)

5646 Description

Short technical summary and product information.

The APEM 5646 is a miniature toggle switch designed for various electrical applications. It features a Double Pole Double Throw (DPDT) configuration with an ON-OFF-ON circuit, providing three distinct states for control.

This switch is equipped with solder terminals for secure connections and has a bushing length of 0.75 inches. It is supplied in bulk packaging, with one item per pack.

The APEM 5646 is suitable for applications requiring reliable switching with a compact form factor. Its robust construction and specific circuit configuration make it a versatile component for control panels and electronic assemblies.

5646 Quick Information

Product Type: Toggle Switch

Canonical Name: APEM 5646 Miniature Toggle Switch

Subcategory: Miniature Toggle Switch

5646 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5646 Estimated Pricing

Qty	Low	High
1+	$0.75	$0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

5646 Features

DPDT switching function.
ON-OFF-ON circuit operation.
Solder mounting termination.
0.75 inch bushing length.
Bulk packaging with 1 piece.

5646 Applications

DPDT ON-OFF-ON for two-circuit switching
Miniature toggle for compact control panels
Lever lock design for stable position retention
Suitable for test equipment signal routing

5646 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the switch function?

DPDT (Double Pole Double Throw).

What is the switch circuit?

ON-OFF-ON.

How many positions does it have?

2 positions.

What is the mounting type?

Solder mounting.

What is the bushing length?

0.75 inches.

What is the packaging type?

Bulk packaging.

How many items per pack?

1 item per pack.
