| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Illumination | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Torque | |
| Voltage Rating |

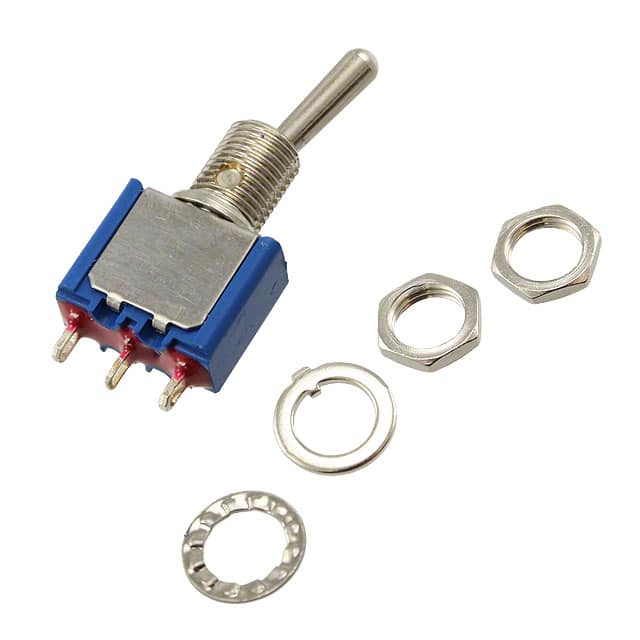

The APEM Inc. 5636AB is a miniature toggle switch from the 5000M series, featuring a threaded bushing with a 11.9 mm (15/32) diameter. This single pole, double throw (SPDT) switch is designed for panel mounting and utilizes solder lug terminals for termination.
Key electrical specifications include a current rating of 6A at 125VAC and 4A at 30VDC, with an initial contact resistance of 10 mΩ maximum. The insulation resistance is rated at 1,000 MΩ minimum at 500 VDC. The switch operates within a temperature range of -40°C to +85°C.
Constructed with a diallyl phthalate (DAP) or high-temperature plastic case, brass nickel-plated actuator and bushing, and stainless steel or steel tin-plated housing, this switch is built for durability. The epoxy sealed terminals provide protection. Agency approvals include UL and CSA.
Distinctive features include its compact size, panel mounting capability, and a standard round actuator. The bushing thread is 1/4-40, and the panel cutout diameter is 6.50mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The switch is rated for 6A at 125VAC and 4A at 30VDC.
The initial contact resistance is a maximum of 10 mΩ.
The insulation resistance is a minimum of 1,000 MΩ at 500 VDC.
The low level or mechanical life is 100,000 cycles.
The bushing diameter is 11.9 mm (15/32).
The panel cutout dimension is circular with a 6.50mm diameter.
