| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Contacts | |
| Country of Origin | |
| Failure Rate | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Terminal Type | |
| Termination Style | |
| Voltage | |
| Width |

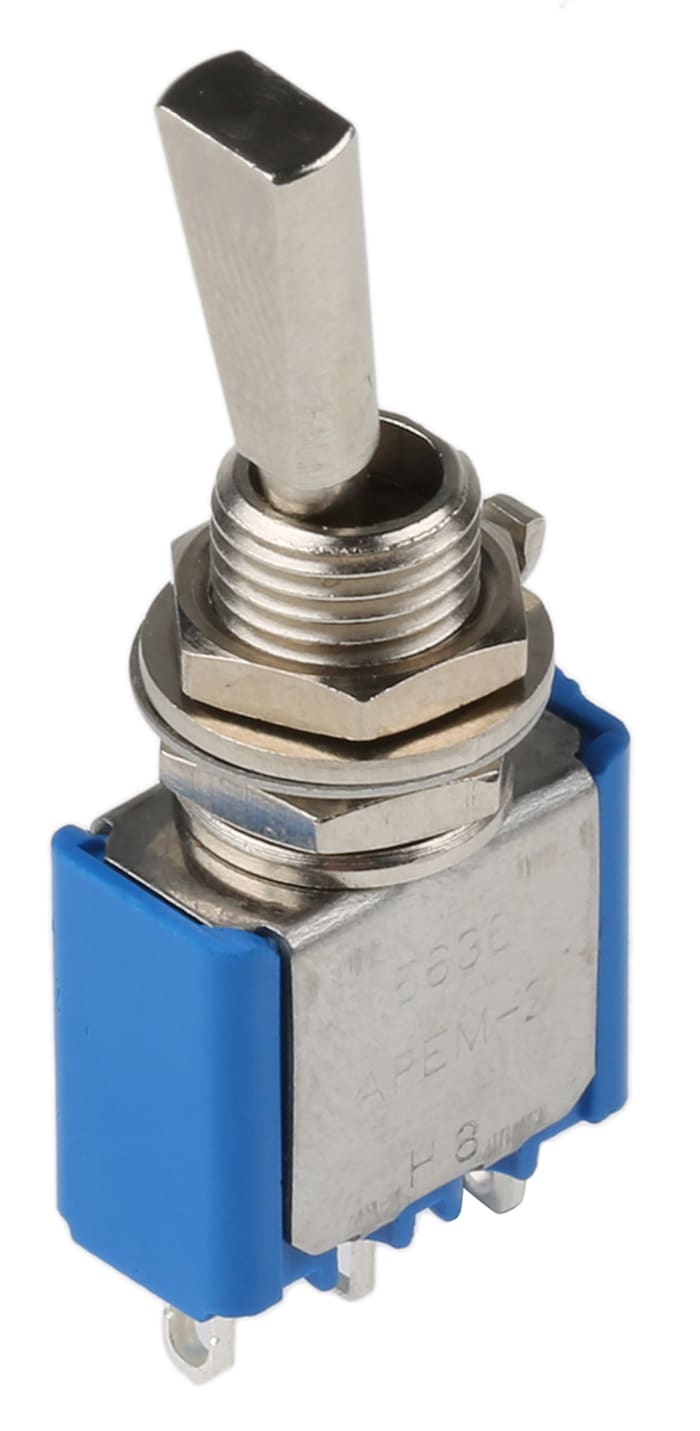

The APEM 5636A9 is a durable toggle switch designed for panel mounting. It features a Single Pole Double Throw (SPDT) contact configuration with a simple On-On operation, making it suitable for various switching applications.
This switch is rated for a maximum DC voltage of 30V and an AC voltage of 250V, with a contact current rating of 4A. The terminal type is solder, facilitating secure connections. The panel cutout size required is 6.5 mm, and it has a mechanical life of 100,000 operations.
Constructed with a brass actuator and a Diallyl Phthalate case, the APEM 5636A9 is built for reliability. It operates within a temperature range of -40°C to 85°C. The switch belongs to the APEM 5000 series and is manufactured in France.
Key specifications include a panel mount type, solder terminal type, and an illuminated 'No' feature. The dimensions are a height of 34.2mm, length of 13.2mm, and width of 7mm. It meets several standards and approvals, including UL, RoHS, CSA, and CECC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 5636A9 toggle switch has an SPDT (Single Pole Double Throw) contact configuration.
The APEM 5636A9 toggle switch is rated for 30V DC and 250V AC.
The APEM 5636A9 toggle switch operates between -40°C and 85°C.
The APEM 5636A9 toggle switch uses solder terminals.
The APEM 5636A9 toggle switch requires a panel cutout size of 6.5 mm.
The APEM 5636A9 toggle switch has a mechanical life of 100,000 operations.
