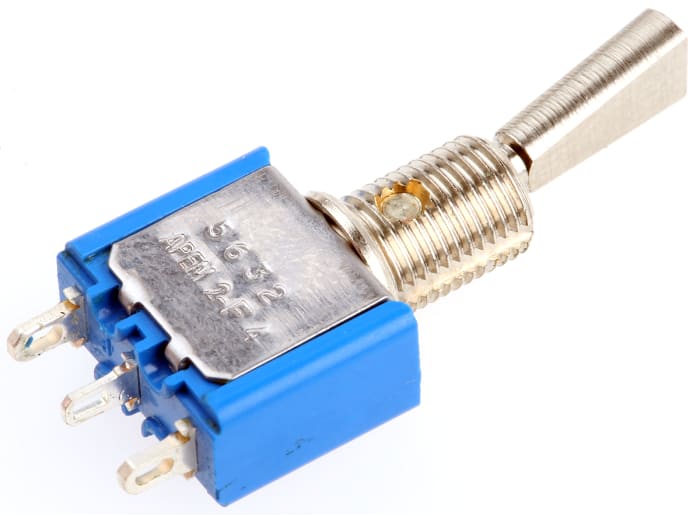

5632A9 The APEM 5632A9 is a SPDT On-On toggle switch designed for panel mounting. It features a 4A contact current rating and operates at up to 30V dc or 250V ac.
Mfr Part #:

5632A9

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM 5632A9 is a SPDT On-On toggle switch designed for panel mounting. It features a 4A contact current rating and operates at up to 30V dc or 250V ac.
✓ Total Stock: 8 pcs
$ Price Range: $0.81

5632A9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5632A9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Contact Material
Country of Origin
Failure Rate
Height
Length
Mounting Type
Terminal Type
Termination Style
Width
View Similar Products (0)

5632A9 Description

Short technical summary and product information.

This APEM 5632A9 is a single-pole double-throw (SPDT) toggle switch with an On-On operation, suitable for panel mounting applications. It offers a contact current rating of 4A and can handle voltages up to 30V dc and 250V ac.



The switch features solder terminals for secure connections and a mechanical life of 100,000 operations, indicating durability for frequent use. The panel cutout size required is 6.5 mm, and the actuator is made of brass. The operating temperature range is from -40°C to 85°C.



Key specifications include a width of 7mm, length of 13.2mm, and height of 34.2mm. The series is 5000, and it is manufactured in France. Approvals include UL, CSA, CECC, and RoHS compliance.



This toggle switch is designed for reliable switching in various electrical and automation systems where a simple On-On function is required.

5632A9 Quick Information

Product Type: Toggle Switch
Series: 5000
Canonical Name: APEM 5632A9 SPDT On-On Toggle Switch
Subcategory: Accessories

5632A9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5632A9 Estimated Pricing

Qty Low High
1+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

5632A9 Features

  • SPDT On-On toggle switch for panel mounting.
  • 4A contact current rating.
  • 30V dc and 250V ac voltage capability.
  • Durable with 100,000 mechanical operations.
  • Wide operating temperature range of -40°C to 85°C.

5632A9 Applications

  • Ideal for general purpose switching.
  • Suitable for automation control panels.
  • Used in industrial equipment.
  • Applicable in test and measurement devices.

5632A9 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact configuration of the APEM 5632A9 toggle switch?

The APEM 5632A9 toggle switch has a SPDT (Single Pole Double Throw) contact configuration.

What is the switch operation for the APEM 5632A9?

The switch operation for the APEM 5632A9 is On-On.

What is the maximum DC voltage rating for the APEM 5632A9 toggle switch?

The APEM 5632A9 toggle switch has a maximum DC voltage rating of 30V dc.

What is the maximum AC voltage rating for the APEM 5632A9 toggle switch?

The APEM 5632A9 toggle switch has a maximum AC voltage rating of 250V ac.

What is the operating temperature range for the APEM 5632A9?

The APEM 5632A9 operates within a temperature range of -40°C to 85°C.

What is the mechanical life of the APEM 5632A9 toggle switch?

The APEM 5632A9 toggle switch has a mechanical life of 100,000 operations.
