563002B00000G Aluminum black anodized heat sink for TO-220 packages. Vertical board mount with bolt-on and PC pin attachment, 13°C/W thermal resistance.
Mfr Part #:

563002B00000G

Available from 1 distributors
Mfr Name: Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation
Aluminum black anodized heat sink for TO-220 packages. Vertical board mount with bolt-on and PC pin attachment, 13°C/W thermal resistance.
✓ Total Stock: 11 pcs
$ Price Range: $1.33 - $3.53

563002B00000G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

563002B00000G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attachment Method
Fin Height
Length
Material
Material Finish
Package Cooled
Power Dissipation @ Temperature Rise
Shape
Thermal Resistance @ Forced Air Flow
Thermal Resistance @ Natural
Type
Width
View Similar Products (0)

563002B00000G Description

Short technical summary and product information.

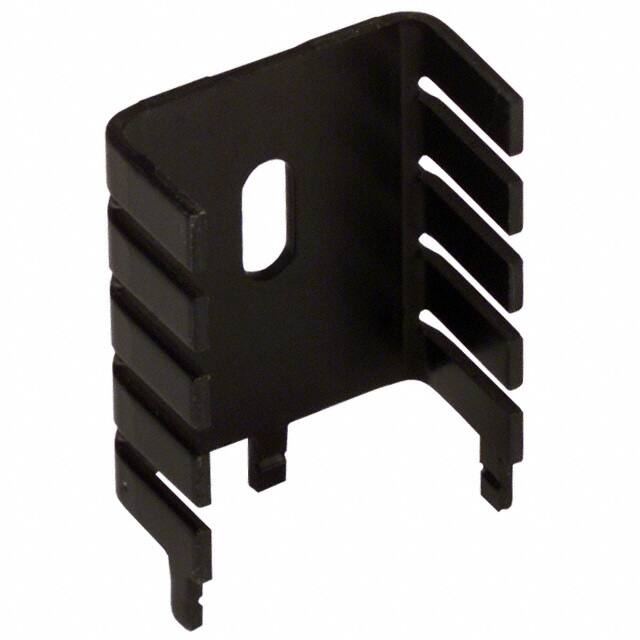

The 563002B00000G is a board level vertical heat sink from Aavid, Thermal Division of Boyd Corporation, designed specifically for TO-220 semiconductor packages. It is constructed from aluminum with a black anodized finish, providing effective heat dissipation and corrosion resistance.



Key thermal specifications include a thermal resistance of 13°C/W under natural convection and 7°C/W at 200 LFM forced air flow. The heat sink can dissipate 1.0W at a 20°C temperature rise. Its rectangular finned shape enhances surface area for improved thermal performance.



Mechanical dimensions are 29.97mm length, 25.40mm width, and 12.70mm fin height. Attachment is achieved via bolt-on and PC pin methods, making it suitable for vertical mounting on printed circuit boards. This heat sink is ideal for cooling power transistors, voltage regulators, and other TO-220 devices in various electronic applications.

563002B00000G Quick Information

Product Type: Heat Sink
Canonical Name: Heatsink for TO-220, Board Level, Vertical, Aluminum, Black Anodized, 29.97mm Length, 25.4mm Width, 12.7mm Fin Height
Subcategory: Board Level Heat Sinks

563002B00000G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

563002B00000G Estimated Pricing

Qty Low High
1+ $3.53 $3.53
10+ $2.80 $2.80
25+ $2.71 $2.71
50+ $2.64 $2.64
100+ $2.54 $2.54
250+ $2.44 $2.44
500+ $2.02 $2.02
1,000+ $1.99 $1.99
2,000+ $1.33 $1.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

563002B00000G Features

  • Designed for TO-220 semiconductor packages.
  • Vertical board mount with bolt-on and PC pin attachment.
  • Aluminum construction with black anodized finish.
  • 13°C/W thermal resistance in natural convection.
  • 7°C/W thermal resistance at 200 LFM forced air.

563002B00000G Applications

  • Used for cooling TO-220 power transistors and voltage regulators.
  • Suitable for power supply and motor control circuits.
  • Ideal for applications requiring vertical heat sink mounting.

563002B00000G FAQs

7 frequently asked questions generated from this part’s specifications.
What package is this heat sink designed for?

This heat sink is designed for TO-220 packages.

What is the thermal resistance of this heat sink?

13°C/W in natural convection and 7°C/W at 200 LFM forced air.

What material is the heat sink made of?

Aluminum with black anodized finish.

What is the attachment method?

Bolt on and PC pin.

Is this heat sink RoHS compliant?

RoHS3 compliant (unverified).

What are the dimensions of this heat sink?

Length 29.97mm, width 25.40mm, fin height 12.70mm.

What is the power dissipation capability?

1.0W at 20°C temperature rise.
