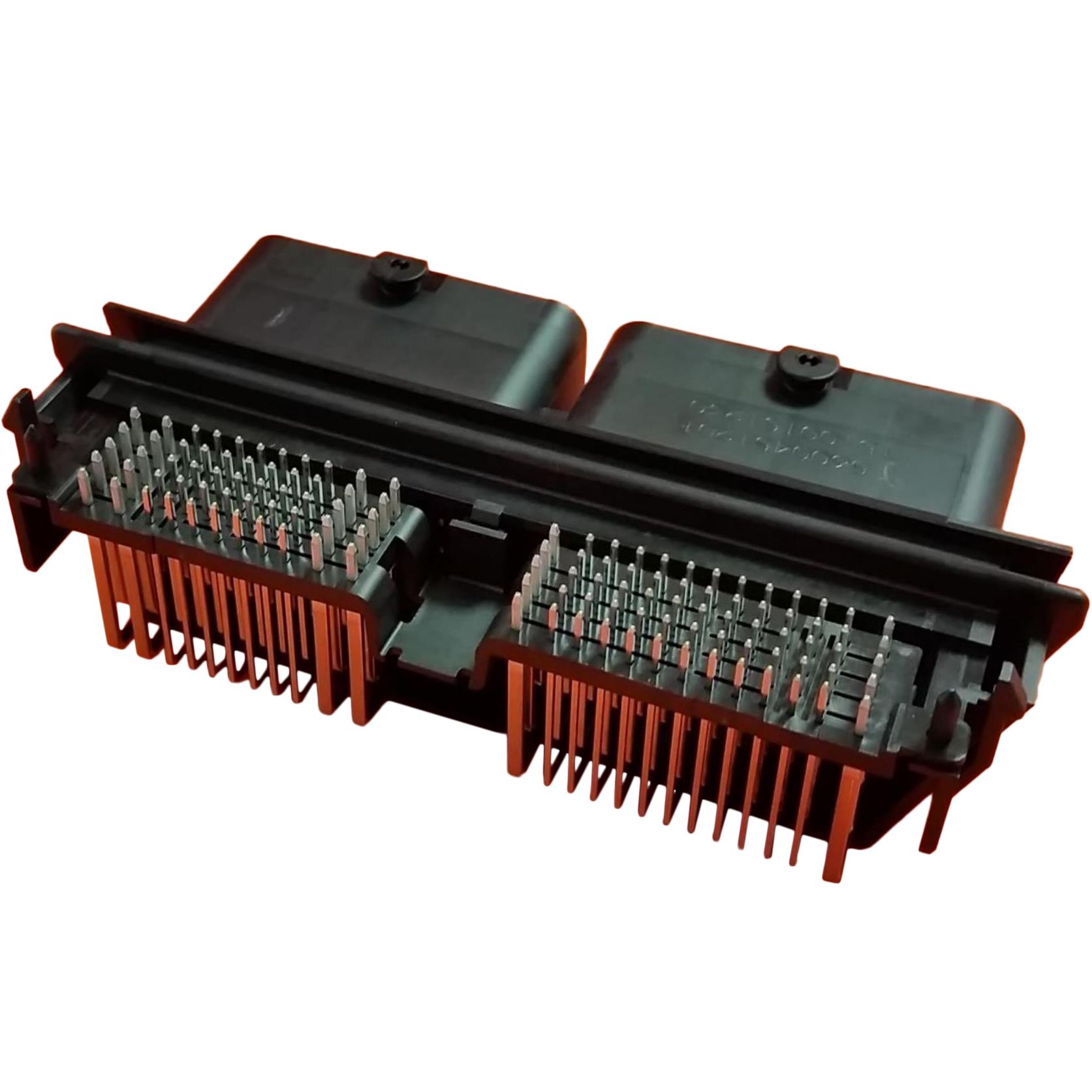

The Molex 5600451201 is a 120-position header male pin connector designed for board-to-cable/wire applications. It is part of the CMX series and features a shrouded 4-wall design for secure mating and alignment. The connector has a push-pull fastening type and includes a board guide feature for easy insertion.
The header is rated for 12A per contact and 14VDC, making it suitable for moderate power and signal transmission. It has 5 rows of square male pins with tin-plated copper alloy contacts. The insulation material is black glass-filled PBT, providing good mechanical and thermal properties.
The mounting type is through hole, right angle, with solder termination. The contact length is 3.60mm. The operating temperature range is -40°C to 105°C, allowing use in a variety of environments. The connector is RoHS compliant and has MSL 1 (unlimited) moisture sensitivity level.
This header is commonly used in industrial, automotive, and consumer electronics where reliable wire-to-board connections are required. The 120 positions in a compact 5-row configuration allow for high-density interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $19.82 | $19.82 |
| 10+ | $19.48 | $19.48 |
| 25+ | $19.15 | $19.15 |
| 50+ | $18.79 | $18.79 |
| 100+ | $18.78 | $18.78 |
| 256+ | $17.07 | $17.07 |
| 512+ | $16.76 | $16.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
12A per contact.
14VDC.
Through hole, right angle.
-40°C to 105°C.
5 rows.
Copper alloy with tin plating.
