| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,516 pcs
|
21516 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

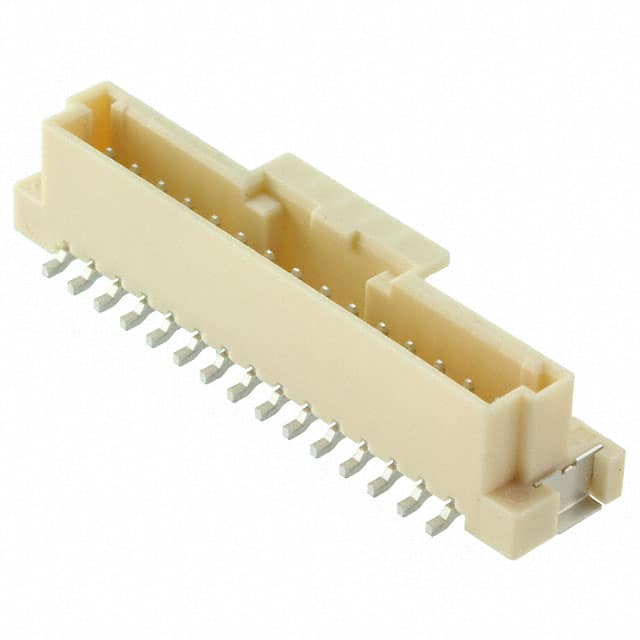

The Molex 5600201520 is a 15-position, single row, male pin header with a 2.00mm (0.079") pitch. It is a shrouded, 4-wall design with a latch lock fastening system, making it suitable for board-to-cable or wire applications. The connector is rated for surface mount soldering and features solder retention for secure mounting.
The contacts are made of copper alloy with a tin finish, and the insulation is natural polyamide (nylon). The insulation height is 8.00mm (0.315"). The connector is designed for surface mount technology and is terminated by solder.
The component is RoHS3 compliant, has an MSL of 1 (unlimited), and is REACH unaffected. It is packaged and suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.79 | $1.79 |
| 10+ | $1.73 | $1.73 |
| 25+ | $1.66 | $1.66 |
| 650+ | $1.52 | $1.52 |
| 1,300+ | $1.43 | $1.43 |
| 1,950+ | $1.38 | $1.38 |
| 4,550+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
2.00mm (0.079").
Surface Mount (SMD).
1 row.
Latch Lock.
Yes, it is shrouded with 4 walls.
Copper alloy contacts with tin plating.
