| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,130 pcs
|
42130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

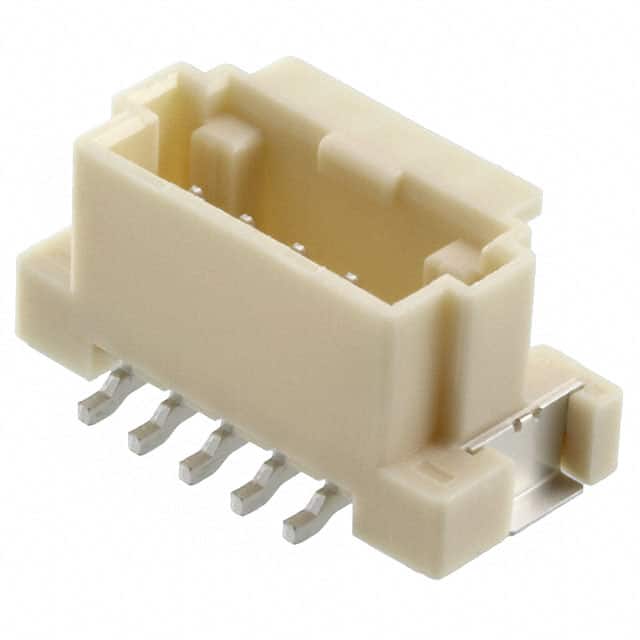

The Molex 5600200520 is a 5-position, single-row shrouded male pin header designed for board-to-wire cable connections. It features a 2.00mm pitch, making it suitable for compact electronic assemblies where space is limited. This surface mount connector uses solder termination for reliable electrical connections.
The header is fully shrouded with a 4-wall design, providing pin protection and polarization for correct mating. A latch lock fastening mechanism ensures secure retention with the mating connector. Solder retention features improve board mounting strength during assembly and operation.
The insulator is made of natural polyamide (nylon) with an insulation height of 8.00mm. Contacts are made of copper alloy with tin plating for good conductivity and corrosion resistance. The connector is designed for surface mount soldering processes.
The part number 5600200520 is manufactured by Molex, a leading global supplier of electronic interconnect solutions. This product is commonly used in consumer electronics, industrial controls, and automotive applications requiring a compact, reliable board-to-wire interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $1.03 | $1.03 |
| 100+ | $0.87 | $0.87 |
| 650+ | $0.83 | $0.83 |
| 1,300+ | $0.79 | $0.79 |
| 1,950+ | $0.77 | $0.77 |
| 3,250+ | $0.74 | $0.74 |
| 4,550+ | $0.72 | $0.72 |
| 6,500+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions
2.00mm
Surface mount
Yes, latch lock fastening type
Tin
Polyamide (PA), Nylon
Yes, board to cable/wire style
