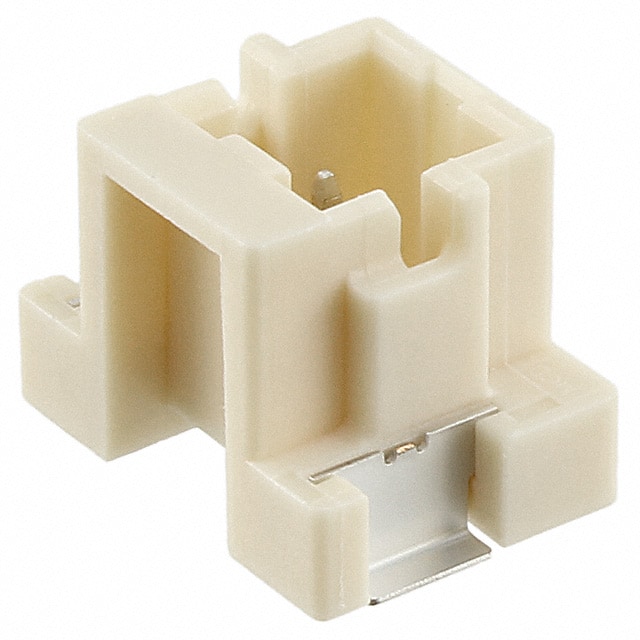

5600200200 Molex 5600200200 is a 2-position, single-row, 2mm pitch surface mount header with shrouded 4-wall design and latch lock. It features tin-plated copper alloy male pins and solder retention for reliable board-to-cable connections.
Mfr Part #:

5600200200

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 5600200200 is a 2-position, single-row, 2mm pitch surface mount header with shrouded 4-wall design and latch lock. It features tin-plated copper alloy male pins and solder retention for reliable board-to-cable connections.
✓ Total Stock: 560 pcs
$ Price Range: $0.60

5600200200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
560 pcs
On Request
560 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5600200200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

5600200200 Description

Short technical summary and product information.

This is a Molex 5600200200 2-position header, part of the Molex family of rectangular connectors. It is a surface mount device with a 2.00mm pitch, designed for board-to-cable/wire applications. The connector features a shrouded 4-wall design with a latch lock fastening system for secure mating.



The header has a single row of 2 male pins made of copper alloy with tin contact finish. The insulation is natural-colored polyamide (nylon) with an 8.00mm height. It includes solder retention features to aid in assembly. All positions are loaded.



This component is suitable for automated SMT assembly. The latch lock provides mechanical retention. The natural insulation color and compact size make it suitable for space-constrained designs. Compliance data is unverified but RoHS3, REACH unaffected, and MSL 1 are indicated.

5600200200 Quick Information

Product Type: Header, Male Pins
Series: WtB
Canonical Name: Molex 5600200200 2-Position 2mm Pitch SMT Header
Subcategory: Male Pins

5600200200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5600200200 Estimated Pricing

Qty Low High
3,900+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

5600200200 Features

  • 2-position single-row 2mm pitch header.
  • Surface mount with solder termination.
  • Shrouded 4-wall design with latch lock.
  • Tin-plated copper alloy male pins.
  • Solder retention for reliable assembly.

5600200200 Applications

  • Board-to-cable/wire connections in compact devices.
  • SMT assembly for automated production lines.
  • Applications requiring latch lock security.
  • Space-constrained designs with 2mm pitch.

5600200200 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 5600200200 have?

2 positions.

What is the pitch of the Molex 5600200200?

2.00mm (0.079 inches).

What is the mounting type of the Molex 5600200200?

Surface mount.

What is the fastening type?

Latch lock.

What is the contact finish?

Tin.

What is the insulation material?

Polyamide (nylon).

What is the style of this connector?

Board to cable/wire.
