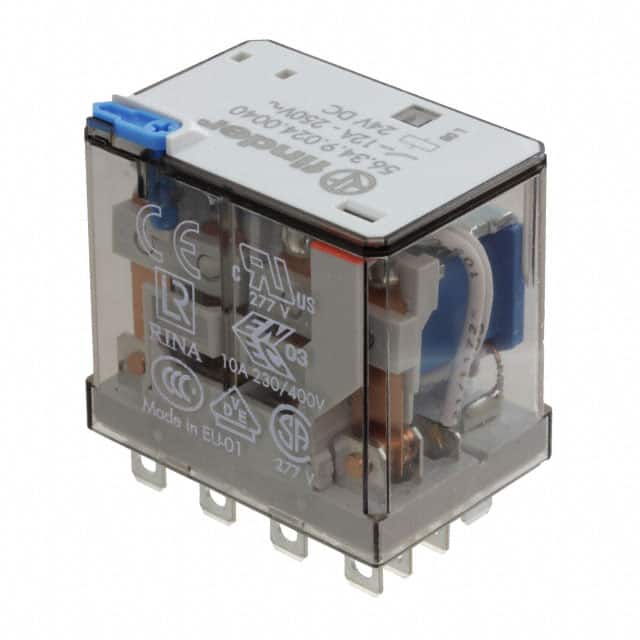

The Finder 56.34.9.024.0040 is a miniature power relay from the 56 SERIES, featuring a 4PDT (4 Form C) contact configuration and a 12A rated current. It operates with a 24VDC coil and has a non-latching type.
This relay is suitable for general-purpose applications and offers a maximum switching voltage of 400V AC. Key electrical specifications include a rated load of 3000 VA for AC1 and 700 VA for AC15 (230V AC). It also supports a single-phase motor rating of 0.55 kW at 230V AC.
Designed for convenience, the 56.34.9.024.0040 features socketable mounting and Plug-In/Quick Connect termination (0.187" / 4.7mm). It includes a mechanical indicator and a test button for ease of use. The operating temperature range is -40°C to 70°C.
Contact material is Silver Nickel (AgNi). The relay has an operate and release time of 11 ms. It boasts a mechanical life of 20 million cycles and an electrical life of 100,000 cycles at rated load.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The relay has a 4PDT (4 Form C) contact configuration.
The rated current for the contacts is 12 A.
The coil voltage is 24VDC.
The operating temperature range is -40°C to 70°C.
The mounting type is socketable.
The termination style is Plug In, Quick Connect - 0.187" (4.7mm).
