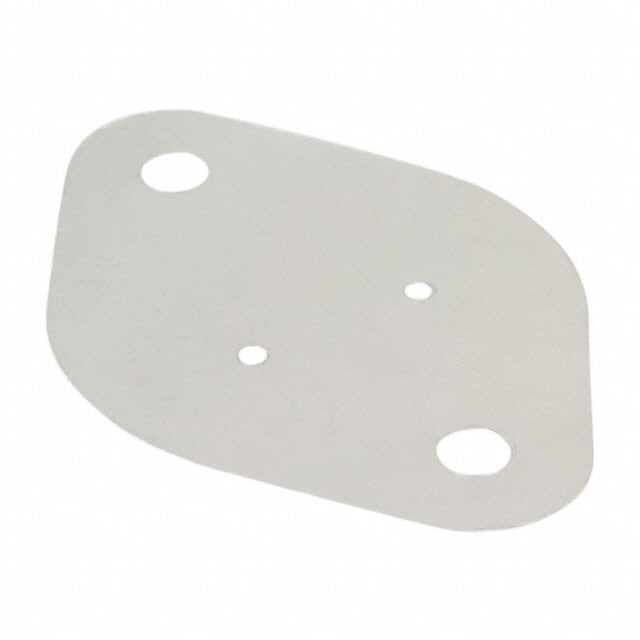

56-03-8G Mica insulator pad for TO-3 transistors. Measures 42.85mm x 30.15mm with 0.051mm thickness.
Mfr Part #:

56-03-8G

Available from 1 distributors
Mfr Name: Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation
Mica insulator pad for TO-3 transistors. Measures 42.85mm x 30.15mm with 0.051mm thickness.
✓ Total Stock: 500 pcs
$ Price Range: $0.58 - $0.71

56-03-8G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

56-03-8G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Material
Outline
Shape
Thickness
Type
Usage
View Similar Products (0)

56-03-8G Description

Short technical summary and product information.

The 56-03-8G is a mica insulator pad designed for use with TO-3 transistor packages. It features a rhombus shape with an outline of 42.85mm x 30.15mm and a thickness of 0.051mm (0.0020 inches). The opaque mica material provides electrical insulation between the transistor and heatsink while maintaining thermal conductivity. This insulator is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is a direct replacement for standard TO-3 insulator pads. Manufactured by Aavid, Thermal Division of Boyd Corporation, a leader in thermal management solutions.

56-03-8G Quick Information

Product Type: Insulator Pad
Canonical Name: Mica Insulator Pad for TO-3 Transistor, 42.85mm x 30.15mm, 0.051mm Thick
Subcategory: Pads, Sheets

56-03-8G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

56-03-8G Estimated Pricing

Qty Low High
1+ $0.71 $0.71
10+ $0.63 $0.63
25+ $0.60 $0.60
50+ $0.59 $0.59
100+ $0.58 $0.58
4,000+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

56-03-8G Features

  • Mica material for electrical insulation.
  • 0.051mm thin profile for low thermal resistance.
  • Designed for TO-3 transistor packages.
  • Rhombus shape with 42.85x30.15mm outline.
  • RoHS3 compliant for environmental safety.

56-03-8G Applications

  • Used in power transistor mounting to heatsinks.
  • Ideal for linear and switching power supplies.
  • Suitable for industrial motor drives and amplifiers.

56-03-8G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the thickness of the 56-03-8G insulator?

The thickness is 0.051mm (0.0020 inches).

What material is the 56-03-8G made of?

It is made of mica.

What is the shape of the 56-03-8G?

The shape is rhombus.

What are the overall dimensions of the 56-03-8G?

The outline is 42.85mm x 30.15mm.

What is the usage of this insulator?

It is designed for TO-3 transistor packages.

Is the 56-03-8G RoHS compliant?

Yes, it is RoHS3 compliant (unverified).
