| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Type, Function | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Cells | |
| Plating | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Tape and Reel | |
| Tape and Reel Quantity | |
| Termination Style |

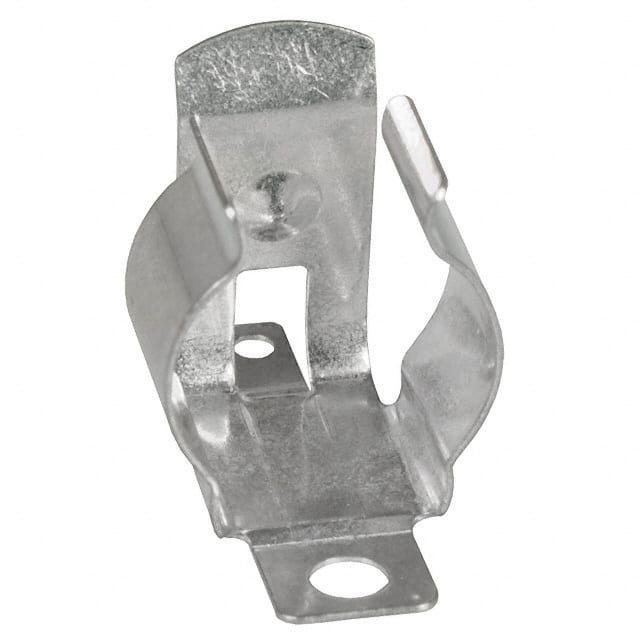

The Keystone Electronics 55TR is a surface mount battery contact clip designed for a single cylindrical cell. It features a contact clip style with SMD (SMT) tab termination, suitable for PCB mounting.
Constructed from 0.010 inch spring steel with a tin-nickel plating, this contact provides reliable spring tension to accommodate variations in battery length. The "flow-hole" SMT solder tail design increases joint strength.
The component is supplied on tape and reel with 250 pieces per reel, 32mm wide tape with 20mm pitch on a 13 inch reel. It is RoHS compliant and has an MSL of 1 (unlimited).
PCB, Surface Mount.
SMD (SMT) Tab.
Spring steel (0.010 inch).
Tin-nickel plating.
1 cell.
250 pieces per reel.
Yes, RoHS3 Compliant (low confidence).
