Mfr Part #:

558666-4

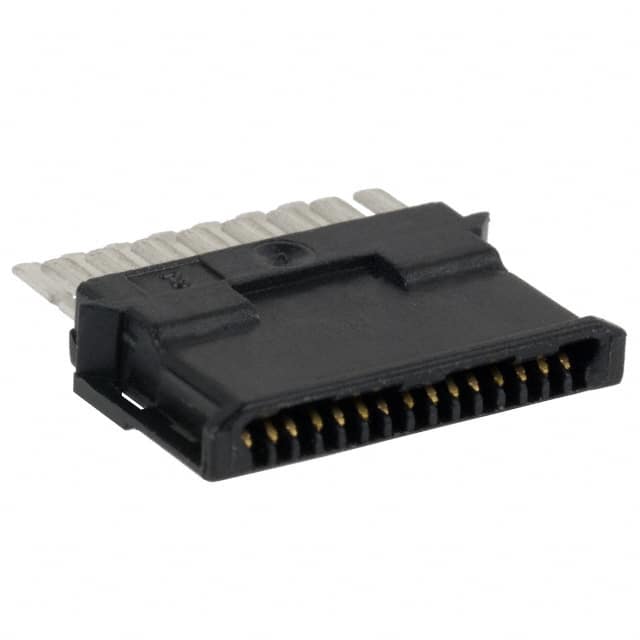

TE Connectivity AMP Connectors 558666-4 is a 15-position PCMCIA card connector with gold-plated contacts. It features a free hanging (in-line) mounting style and keyed design for polarized mating.

✓ Total Stock: 1,000 pcs

$ Price Range: $5.94

558666-4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	1,000 pcs On Request	1000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

558666-4 Description

Short technical summary and product information.

The TE Connectivity AMP Connectors 558666-4 is a PC Card socket designed for PCMCIA cards. It has 15 positions and uses a push-in, pull-out insertion and removal method.

The connector features gold-plated contacts with a thickness of 10.0 microinches (0.25 micrometers) for reliable connectivity. It is designed for free hanging (in-line) mounting and includes a keyed feature to ensure correct orientation during mating.

The part is supplied in bulk packaging. The connector type is a general purpose connector for PCMCIA card applications.

558666-4 Quick Information

Product Type: PC Card Socket

Canonical Name: TE Connectivity AMP Connectors 558666-4 PC Card Socket, 15 Position, PCMCIA, Free Hanging

Subcategory: PC Card Socket

558666-4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: Non-Compliant

558666-4 Estimated Pricing

Qty	Low	High
1,200+	$5.94	$5.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

558666-4 Features

15-position PCMCIA card connector.
Gold-plated contacts for reliable connections.
Free hanging (in-line) mounting style.
Keyed design prevents incorrect mating.
Push-in, pull-out insertion and removal method.

558666-4 Applications

Used with PCMCIA memory or I/O cards.
Suitable for embedded computer systems.
Ideal for portable electronic devices.

558666-4 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the number of positions on this connector?

This connector has 15 positions.

What card type is this connector designed for?

It is designed for PCMCIA cards.

What is the mounting type for this connector?

The mounting type is Free Hanging (In-Line).

Does the connector have a keyed feature?

Yes, it is keyed to ensure correct orientation.

What is the contact finish material and thickness?

The contact finish is Gold with a thickness of 10.0 microinches (0.25 micrometers).

How is the card inserted and removed?

The insertion and removal method is Push In, Pull Out.

558666-4 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

558666-1

TE Connectivity

TE Connectivity 558666-1 is a 15-position PCMCIA card connector with gold-plated contacts, free hanging mounting, and keyed design for push-pull insertion.

View Part

5558666-1
