| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

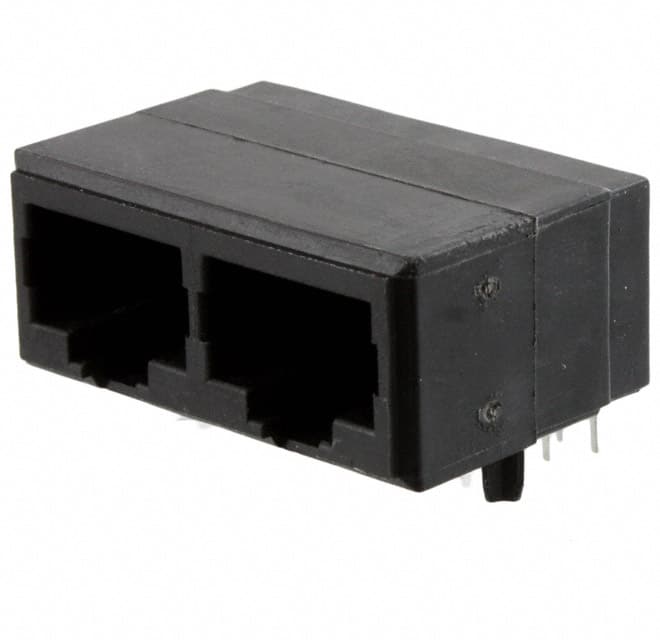

The TE Connectivity 557560-1 is a two-port RJ45 modular jack designed for Ethernet and networking applications. Each port supports 8p8c (8 position 8 contact) wiring, commonly used for Category 4 cabling systems. The connector features a right-angle (90°) orientation, with the tab direction facing downward, making it suitable for edge-mounted PCB layouts.
The jack is unshielded and intended for through-hole solder termination. Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical conductivity and corrosion resistance over repeated mating cycles. A built-in board guide aids in alignment during assembly. The connector does not include integrated LED indicators.
This part is RoHS3 compliant (unverified) and has an MSL rating of Level 1 (unlimited). The low-profile design and single-row 2-port configuration are appropriate for network interface cards, routers, switches, and other data communication equipment where space is limited. The unshielded variant is suitable for environments where electromagnetic interference is not a primary concern.
| Qty | Low | High |
|---|---|---|
| 225+ | $1.59 | $1.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a modular jack (RJ45) with 8p8c contact arrangement.
The 557560-1 has 2 ports, arranged in a single row.
This component mounts via through-hole and is terminated by soldering.
The connector is oriented at a 90° angle (right-angle) with the tab facing down.
No, the 557560-1 does not contain any LED indicators.
