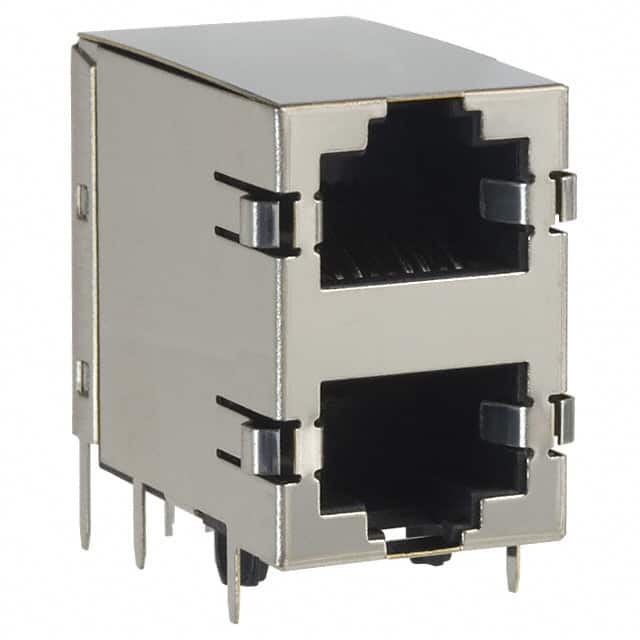

5569381-1 TE Connectivity 5569381-1 is a 2-port, 8p8c (RJ45) modular jack with right angle orientation, through hole mounting, and shielding with EMI finger. It features phosphor bronze gold contacts and a board guide.
Mfr Part #:

5569381-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5569381-1 is a 2-port, 8p8c (RJ45) modular jack with right angle orientation, through hole mounting, and shielding with EMI finger. It features phosphor bronze gold contacts and a board guide.
✓ Total Stock: 33 pcs
$ Price Range: $11.31 - $17.33

5569381-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5569381-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Tape & Reel
Termination
View Similar Products (0)

5569381-1 Description

Short technical summary and product information.

The TE Connectivity 5569381-1 is a modular connector jack designed for Ethernet applications. It features 2 ports with 8 positions (8p8c, RJ45) arranged in 2 rows. The connector is oriented at a 90° right angle and mounts via through hole solder termination. Shielding is provided with an EMI finger for electromagnetic interference reduction. The contacts are made of phosphor bronze with a gold finish, ensuring reliable conductivity and corrosion resistance. The tab direction is up and down, and the jack includes a board guide feature for accurate placement. It is rated for Cat5 performance, suitable for 100 MHz Ethernet networks. The housing does not contain LEDs. This jack is commonly used in networking equipment such as switches, routers, and patch panels.

5569381-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, RJ45, 8p8c, 2 Port, Right Angle, Shielded, Through Hole
Subcategory: RJ45 Jack

5569381-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5569381-1 Estimated Pricing

Qty Low High
1+ $17.33 $17.33
10+ $15.02 $15.02
25+ $14.24 $14.24
45+ $14.03 $14.03
90+ $12.45 $12.45
225+ $11.67 $11.67
450+ $11.31 $11.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

5569381-1 Features

  • Two-port RJ45 modular jack design.
  • Right angle orientation for space-saving.
  • Shielded with EMI finger for noise reduction.
  • Through hole mounting for secure attachment.
  • Gold plated phosphor bronze contacts.

5569381-1 Applications

  • Used in Ethernet networking equipment.
  • Ideal for patch panels and routers.
  • Suitable for industrial control systems.
  • Common in telecommunications hardware.

5569381-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8 positions (8p8c, RJ45, Ethernet).

What is the mounting type?

Through hole.

What is the orientation?

90° Angle (Right).

Is the connector shielded?

Yes, shielded with EMI finger.

What is the contact finish?

Gold.

What is the performance rating?

Cat5.

Does it contain LEDs?

No, it does not contain LED.
