| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style |

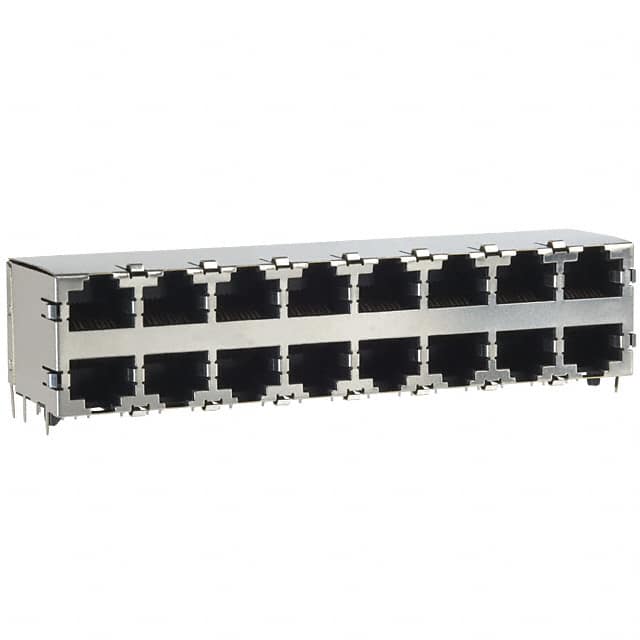

The TE Connectivity 5569264-1 is a 16-port modular connector jack designed for RJ45 (8p8c) Ethernet applications. It features a right angle orientation and through hole mounting with solder termination, making it suitable for dense PCB layouts where space is at a premium.
This connector is shielded with an EMI finger design to help reduce electromagnetic interference, and it includes a board guide feature for reliable alignment during assembly. The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections over repeated mating cycles.
Rated as Category 5 (Cat5), this jack supports standard Ethernet data rates and is suitable for networking equipment, patch panels, and other data communication applications. The tab direction is up and down, providing flexibility in cable orientation.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.91 | $37.91 |
| 10+ | $34.36 | $34.36 |
| 20+ | $34.21 | $34.21 |
| 50+ | $33.19 | $33.19 |
| 100+ | $32.65 | $32.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a Jack (RJ45, Ethernet).
It has 16 ports.
It is a through hole mount connector.
Yes, it is shielded with an EMI finger.
It is rated as Category 5 (Cat5).
It has a right angle (90°) orientation.
The contact finish is gold.
