| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,077 pcs
|
1077 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

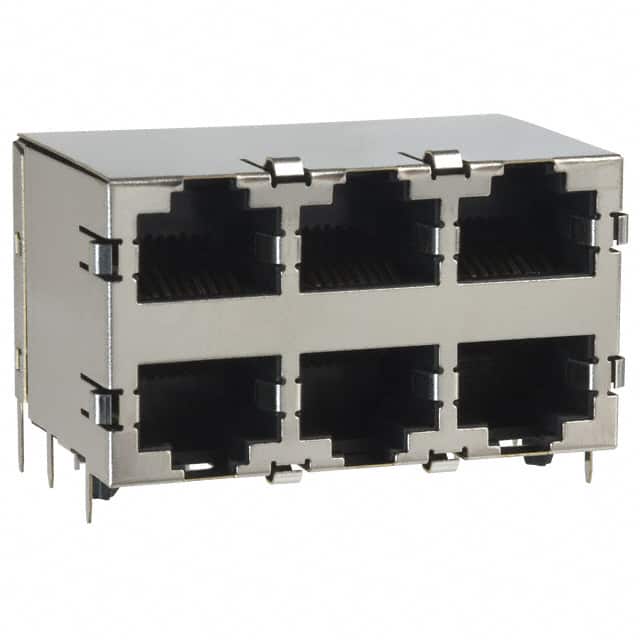

The TE Connectivity 5569261-1 is a modular jack designed for Ethernet connectivity. It provides 6 ports of 8p8c (RJ45) interface arranged in 2 rows, making it suitable for multi-port networking applications. The connector uses through-hole mounting with solder termination for reliable mechanical and electrical connection to the PCB.
This jack features a right-angle (90°) orientation, which allows for low-profile PCB designs and helps in cable management. The shielding includes an EMI finger to reduce electromagnetic interference, ensuring signal integrity in demanding environments. The contact material is phosphor bronze with a gold finish, providing excellent conductivity and corrosion resistance.
The connector is rated for Cat5, supporting up to 100 MHz, suitable for Fast Ethernet and other legacy networking standards. Additional features include a board guide for accurate alignment during assembly. The tab direction is up and down, compatible with standard RJ45 plugs. No LED indicators are included.
| Qty | Low | High |
|---|---|---|
| 1+ | $37.98 | $37.98 |
| 24+ | $30.35 | $30.35 |
| 48+ | $28.90 | $28.90 |
| 72+ | $28.08 | $28.08 |
| 120+ | $27.09 | $27.09 |
| 264+ | $25.63 | $25.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet)
Through Hole
6 ports
90° Angle (Right)
Yes, shielded with EMI finger
Gold
RoHS3 Compliant (low confidence, unverified)
