| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| ELV | |
| Features | |
| Halogen Content | |
| Halogen Free | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Part Status | |
| Ratings | |
| Shielding | |
| Solder Process Capability | |
| Tab Direction | |
| Termination | |
| Termination Style |

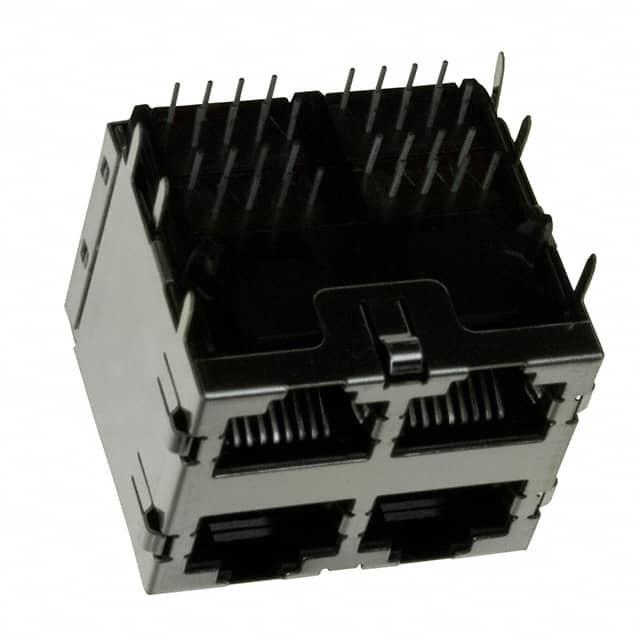

The TE Connectivity 5569260-1 is a modular connector jack designed for Ethernet and networking applications. It features 8 positions (8P8C, RJ45) across 4 ports arranged in 2 rows. The connector is shielded with an EMI finger for enhanced electromagnetic interference protection.
This jack is through hole mounted with a right angle (90°) orientation and solder termination. It includes a board guide feature for easier assembly. The contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections.
The part is rated for Cat5 performance and is wave solder capable to 265°C. It does not contain LEDs. The tab direction is up and down.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.09 | $29.09 |
| 10+ | $24.73 | $24.73 |
| 30+ | $22.88 | $22.88 |
| 60+ | $21.79 | $21.79 |
| 120+ | $20.75 | $20.75 |
| 270+ | $19.60 | $19.60 |
| 510+ | $18.74 | $18.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is Jack (8P8C, RJ45, Ethernet).
It has 8 positions (8P8C, RJ45, Ethernet).
It has 4 ports.
Through Hole mounting.
Yes, it is shielded with an EMI finger.
Right Angle (90° Angle).
Solder termination.
