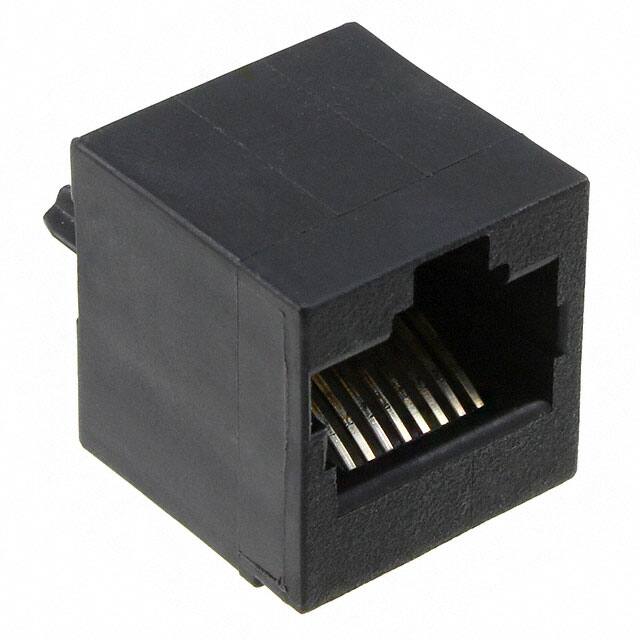

5558398-1 TE Connectivity 5558398-1 is a modular jack with 8p8c (RJ45) configuration, vertical orientation, unshielded, through hole mounting with solder termination. It is rated for Cat5 applications.
Mfr Part #:

5558398-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5558398-1 is a modular jack with 8p8c (RJ45) configuration, vertical orientation, unshielded, through hole mounting with solder termination. It is rated for Cat5 applications.
✓ Total Stock: 40 pcs

5558398-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5558398-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

5558398-1 Description

Short technical summary and product information.

The TE Connectivity 5558398-1 is a modular connector jack designed for Ethernet applications. It features 8 positions and 8 contacts (8p8c) in a single port, single row configuration. The connector is mounted vertically through a through-hole mounting style with solder termination. It is unshielded and does not contain LEDs. The tab direction is user selectable. The connector includes board guide and keyed features for alignment and polarization. Contact material is phosphor bronze with gold finish. It is rated for Cat5 performance. This connector is suitable for use in networking equipment, patch panels, and other data communication devices where a reliable RJ45 connection is required.

5558398-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, 8p8c (RJ45), Vertical, Unshielded, Through Hole, Solder
Subcategory: RJ45 Jack

5558398-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5558398-1 Features

  • 8p8c (RJ45) connector configuration.
  • Vertical through-hole mounting style.
  • Unshielded with user-selectable tab direction.
  • Gold-plated phosphor bronze contacts.
  • Cat5 rated for Ethernet applications.

5558398-1 Applications

  • Cat5 rated for 100 Mbps Ethernet applications.
  • Used in networking and data communication.
  • Vertical orientation for space-constrained designs.

5558398-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8p8c (RJ45, Ethernet).

What is the mounting type?

Through hole.

Is this connector shielded?

No, it is unshielded.

Does it have LEDs?

No, it does not contain LED.

What is the contact finish?

Gold.

What is the Cat rating?

Cat5.

What features does it have?

Board guide and keyed.
