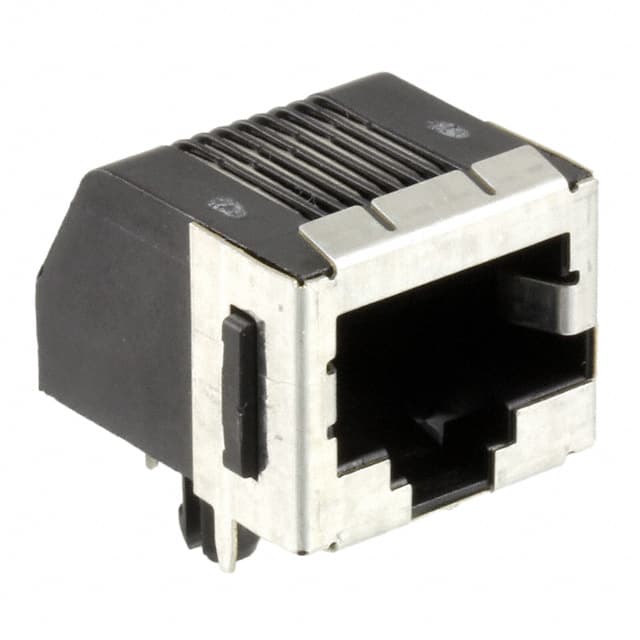

5558382-1 TE Connectivity 5558382-1 is a single-port 8p8c (RJ45) modular jack with through hole mounting, right angle orientation, and shielding with EMI finger. It features gold-plated contacts and Cat3 rating.
Mfr Part #:

5558382-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5558382-1 is a single-port 8p8c (RJ45) modular jack with through hole mounting, right angle orientation, and shielding with EMI finger. It features gold-plated contacts and Cat3 rating.
✓ Total Stock: 44 pcs
$ Price Range: $3.22 - $5.80

5558382-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
44 pcs
On Request
44 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5558382-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

5558382-1 Description

Short technical summary and product information.

The TE Connectivity 5558382-1 is a modular connector jack designed for RJ45 applications. It features 8 positions and 8 contacts (8p8c) in a single port configuration. The connector is through hole mounted with a right angle (90°) orientation, making it suitable for edge-mounted or board-to-cable connections. The shielded design includes an EMI finger for enhanced electromagnetic interference protection. The contacts are made of phosphor bronze with gold plating, ensuring reliable conductivity and corrosion resistance. Additional features include board lock, keyed, and panel stops for secure mounting. This connector is rated for Cat3 applications, supporting data transmission up to 16 MHz. It does not contain an LED indicator. The termination is solder type.

5558382-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, RJ45, 8p8c, Through Hole, Right Angle, Shielded, Cat3
Subcategory: RJ45

5558382-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5558382-1 Estimated Pricing

Qty Low High
1+ $5.80 $5.80
10+ $4.93 $4.93
25+ $4.62 $4.62
50+ $4.40 $4.40
100+ $4.10 $4.10
272+ $4.00 $4.00
544+ $3.79 $3.79
1,088+ $3.23 $3.23
2,584+ $3.22 $3.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

5558382-1 Features

  • Single port 8p8c (RJ45) modular jack.
  • Through hole mounting with right angle orientation.
  • Shielded with EMI finger for EMI protection.
  • Gold-plated phosphor bronze contacts.
  • Rated for Cat3 applications up to 16 MHz.

5558382-1 Applications

  • Used in networking equipment for Cat3 Ethernet.
  • Ideal for patch panels and wall jacks.
  • Suitable for industrial control connections.
  • Applied in telecommunications and data communication systems.

5558382-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

8 positions with 8 contacts (8p8c, RJ45).

What is the mounting type?

Through hole mounting.

What is the orientation of this connector?

Right angle (90°).

Does this connector have shielding?

Yes, shielded with EMI finger.

What is the contact finish?

Gold plating.

What is the category rating?

Cat3, supporting data transmission up to 16 MHz.

Does this connector have an LED?

No, it does not contain an LED.
