| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
272 pcs
|
272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Performance Category | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

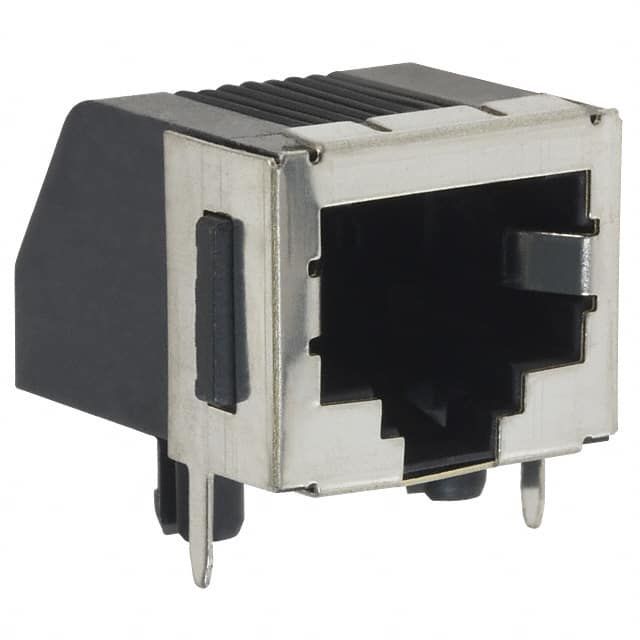

The TE Connectivity 5558178-1 is a shielded RJ45 modular jack designed for single-port Ethernet applications. It features 8 positions (8P8C) and is rated for Category 3 performance, making it suitable for basic networking and telecommunications.
This connector is surface mount with a right angle orientation, enabling low-profile PCB layouts. The contact system uses phosphor bronze with gold plating for reliable signal integrity and corrosion resistance. The housing is shielded to reduce electromagnetic interference.
Additional mechanical features include board locks for secure PCB retention, panel stops for accurate alignment, and solder retention for robust termination. The tab direction is down (standard latch down), and the connector does not include LEDs.
Typical applications include network interface cards, routers, switches, and other data communication equipment where a compact, shielded RJ45 interface is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.52 | $5.52 |
| 10+ | $4.69 | $4.69 |
| 25+ | $4.40 | $4.40 |
| 50+ | $4.19 | $4.19 |
| 136+ | $3.90 | $3.90 |
| 272+ | $3.72 | $3.72 |
| 544+ | $3.54 | $3.54 |
| 1,088+ | $3.37 | $3.37 |
| 2,584+ | $3.17 | $3.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is an RJ45 modular jack (8P8C) with a shielded, right angle, surface mount design.
It has 8 positions (8P8C), configured as a single port.
Yes, it is shielded for electromagnetic interference protection.
It is designed for surface mount (SMT) soldering to a PCB.
It has a right angle orientation with the latch (tab) facing down.
Contacts are made of phosphor bronze with a gold plating finish.
It is rated for Category 3 (Cat3) performance, supporting up to 16 MHz.
