| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,736 pcs
|
4736 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Color | |
| Housing Material | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| UL Flammability Rating |

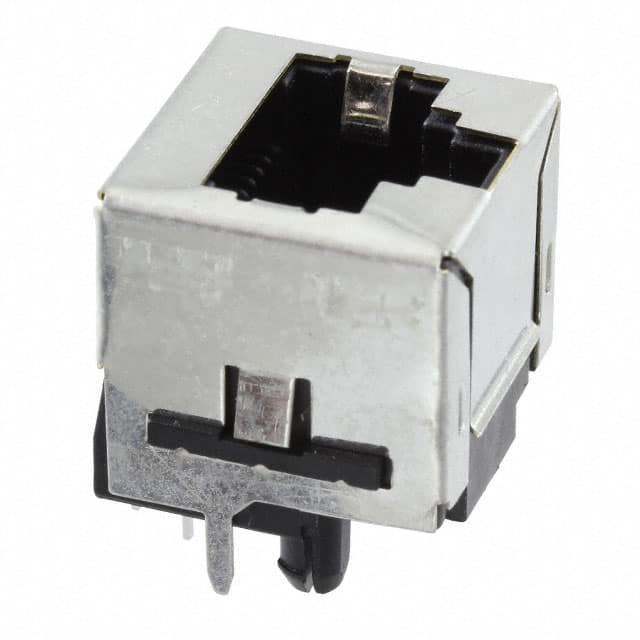

The TE Connectivity 5557484-1 is a single-port RJ45 modular jack designed for reliable Ethernet connectivity. It features 8 positions and 8 loaded positions (8P8C) in a vertical orientation, making it suitable for PCB designs where top-entry mating is required.
This connector is shielded with a copper alloy shield plated with tin and includes an EMI finger for enhanced electromagnetic interference protection. The housing is made of black PBT GF material with a UL 94V-0 flammability rating. Contacts are phosphor bronze with gold plating in the mating area (1.27 µm) and nickel underplating, while the PCB termination area is tin-plated.
Mechanical features include board locks and panel stops for secure mounting, a standard latch-down orientation, and a connector height of 16.89 mm. The operating temperature range is -40 to 85 °C, and the performance category is Cat3. The connector is supplied in bulk packaging with 128 pieces per package.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.83 | $4.83 |
| 10+ | $4.11 | $4.11 |
| 25+ | $3.85 | $3.85 |
| 50+ | $3.67 | $3.67 |
| 108+ | $3.47 | $3.47 |
| 324+ | $3.21 | $3.21 |
| 540+ | $3.10 | $3.10 |
| 1,080+ | $2.95 | $2.95 |
| 2,592+ | $2.77 | $2.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions and 8 loaded positions (8P8C).
It is a through-hole mount connector with vertical orientation.
The operating temperature range is -40 to 85 °C.
Yes, it is shielded with a copper alloy shield plated with tin and includes an EMI finger.
The contact current rating is 0.2 A per contact and 1.5 A total (maximum).
The housing material has a UL 94V-0 flammability rating.
