| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,186 pcs
|
5186 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Positions/Contacts | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

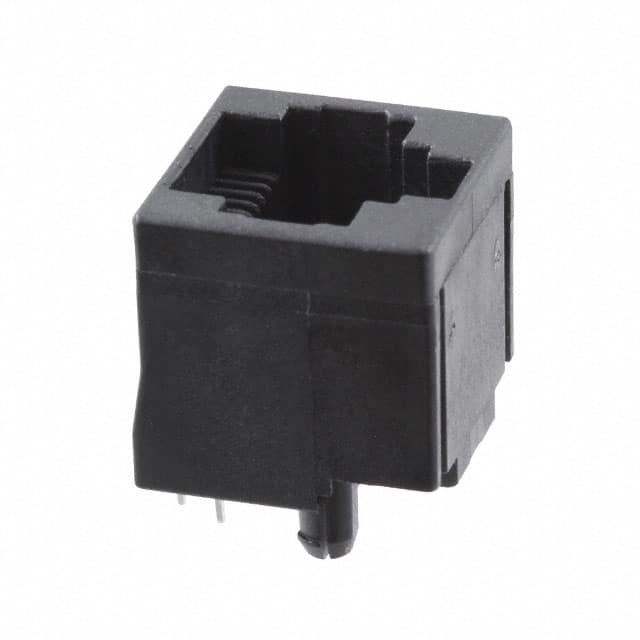

The TE Connectivity 5556416-1 is a modular jack connector designed for vertical through-hole mounting. It features 8 positions and 8 contacts (8p8c), commonly used for RJ45 Ethernet applications. The connector is unshielded and rated for Category 3 performance, suitable for basic networking and telecommunications.
The connector includes a board lock feature for secure attachment to the PCB. Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections. The tab direction is user selectable, providing flexibility in cable orientation. This connector does not include an LED indicator.
Packaging is provided in a PET tray, as per a recent product change notification from TE Connectivity. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for low-speed data transmission and other applications requiring a standard modular interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
| 10+ | $1.58 | $1.58 |
| 25+ | $1.49 | $1.49 |
| 50+ | $1.41 | $1.41 |
| 126+ | $1.32 | $1.32 |
| 252+ | $1.26 | $1.26 |
| 504+ | $1.20 | $1.20 |
| 1,008+ | $1.14 | $1.14 |
| 2,520+ | $1.07 | $1.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Jack (modular jack).
8 positions, 8 contacts (8p8c, RJ45, Ethernet).
Through hole.
No, it is unshielded.
Gold.
Yes, it includes a board lock feature.
User selectable.
