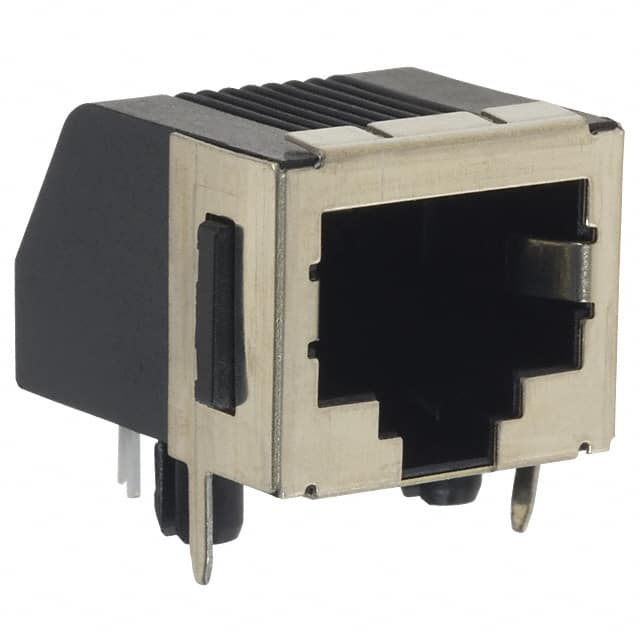

5555153-1 TE Connectivity 5555153-1 is a single port modular jack with 8p8c (RJ45) configuration, Cat3 performance, and shielded construction. It features right angle orientation, through hole mounting, and solder termination.
Mfr Part #:

5555153-1

Available from 4 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5555153-1 is a single port modular jack with 8p8c (RJ45) configuration, Cat3 performance, and shielded construction. It features right angle orientation, through hole mounting, and solder termination.
✓ Total Stock: 124 pcs
$ Price Range: $1.37 - $2.38

5555153-1 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5555153-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

5555153-1 Description

Short technical summary and product information.

The TE Connectivity 5555153-1 is a single port modular jack designed for voice and data applications. It offers an 8p8c (RJ45) contact arrangement with Cat3 performance, suitable for 10 BASE-T networking. The shielded metal shell provides EMI/RFI protection, and the right angle orientation allows for low-profile PCB mounting. Termination is via through hole solder, and the jack includes board lock and panel stops for secure mechanical retention. Contacts are phosphor bronze with gold finish for reliable connectivity. The part is RoHS compliant and meets FCC Part 68 and TIA-1096-A standards. No LED is included.

5555153-1 Quick Information

Product Type: Modular Connector Jack
Series: 5555153
Canonical Name: Modular Jack, 8p8c (RJ45), Cat3, Shielded, Right Angle, Through Hole, Solder
Subcategory: Single Port Modular Jack

5555153-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

5555153-1 Estimated Pricing

Qty Low High
1+ $2.38 $2.38
10+ $2.02 $2.02
25+ $1.89 $1.89
50+ $1.80 $1.80
114+ $1.70 $1.70
342+ $1.57 $1.57
570+ $1.52 $1.52
1,026+ $1.46 $1.46
2,508+ $1.37 $1.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

5555153-1 Features

  • 8p8c (RJ45) Cat3 modular jack.
  • Shielded metal shell for EMI protection.
  • Right angle orientation for PCB mounting.
  • Through hole with solder termination.
  • Includes board lock and panel stops.

5555153-1 Applications

  • Used in communications and telephone systems.
  • Suitable for routers and switches.
  • Applied in servers and computers.
  • Works in business and consumer electronics.

5555153-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and number of positions?

It is an 8p8c (RJ45) modular jack.

What is the mounting type and termination?

Through hole mounting with solder termination.

What orientation is the jack?

Right angle (90°) orientation.

Does the jack have shielding?

Yes, it is shielded.

What performance category is it?

Cat3.

What contact material and finish does it use?

Phosphor bronze contacts with gold finish.

What compliance standards does it meet?

FCC Part 68 and TIA-1096-A.
