| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

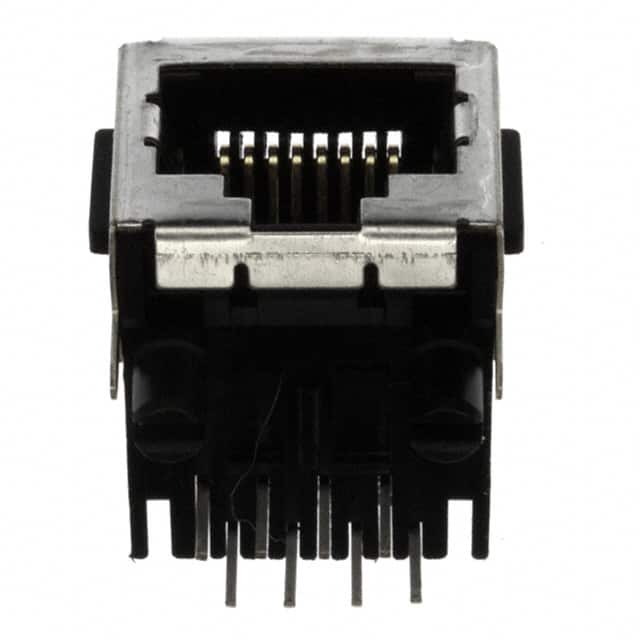

The TE Connectivity 5555141-1 is a single-port modular jack designed for standard RJ45 Ethernet connections. It features 8 positions with 8 contacts (8p8c) and a right-angle orientation for space-constrained PCB layouts. The connector is shielded with an EMI finger to reduce electromagnetic interference, making it suitable for data communication environments.
This jack is rated for Category 3 (Cat3) performance, supporting 10 BASE-T applications. It includes board locks and panel stops for secure mechanical retention during assembly and operation. The tab direction is down, and the connector does not contain LEDs.
Termination is via solder to a through-hole PCB, with phosphor bronze contacts plated in gold for reliable conductivity. The mounting pegs provide additional support during soldering. The part is RoHS compliant per the manufacturer datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.89 | $2.89 |
| 10+ | $2.46 | $2.46 |
| 25+ | $2.30 | $2.30 |
| 30+ | $2.67 | $2.67 |
| 50+ | $2.19 | $2.19 |
| 114+ | $2.07 | $2.07 |
| 210+ | $2.25 | $2.25 |
| 342+ | $1.92 | $1.92 |
| 570+ | $1.85 | $1.85 |
| 1,026+ | $1.77 | $1.77 |
| 2,508+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is a Jack (modular jack).
It has 8 positions with 8 contacts (8p8c), commonly known as RJ45 Ethernet.
Through Hole mounting.
Yes, it is shielded and includes an EMI finger.
90° Angle (Right).
Category 3 (Cat3).
