| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

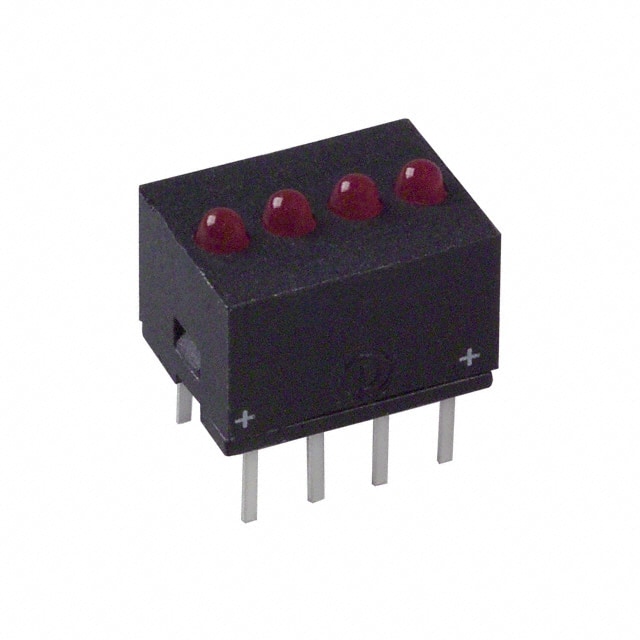

This Dialight 5555003 is an LED circuit board indicator designed for electronic applications. It features four red LEDs, each with a typical forward voltage rating of 5V and a current draw of 6mA. The indicator has a 2mm diameter lens with a clear, round, domed top.
The component is designed for through-hole mounting, making it suitable for direct insertion onto printed circuit boards. The luminous intensity is rated at 0.6mcd with a viewing angle of 35 degrees. This configuration is ideal for status indication on PCBs where space is a consideration.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1. These specifications ensure suitability for various manufacturing and assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical voltage rating for the Dialight 5555003 is 5V.
Each red LED in the Dialight 5555003 has a typical current rating of 6mA.
The Dialight 5555003 uses through-hole mounting.
The typical luminous intensity for the Dialight 5555003 is 0.6mcd.
The Dialight 5555003 features a 2.00mm diameter clear, round lens with a domed top.
