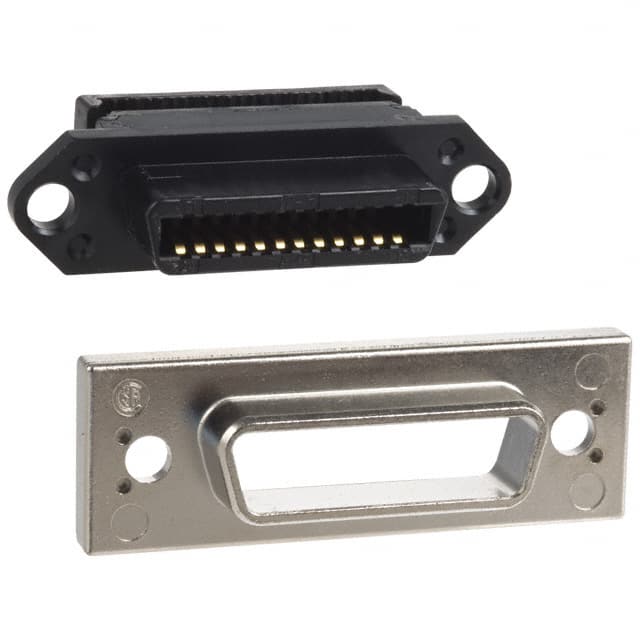

5554349-1 TE Connectivity 5554349-1 is a 24-position Centronics receptacle with outer shroud contacts, panel mount, and IDC termination. It features gold contact finish and a shielded design.
Mfr Part #:

5554349-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5554349-1 is a 24-position Centronics receptacle with outer shroud contacts, panel mount, and IDC termination. It features gold contact finish and a shielded design.
✓ Total Stock: 3 pcs

5554349-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5554349-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Flange Feature
Lead Style
Mounting Type
Number of Positions
Number of Rows
Termination
View Similar Products (0)

5554349-1 Description

Short technical summary and product information.

The TE Connectivity 5554349-1 is a 24-position Centronics receptacle designed for reliable parallel interface connections. It features outer shroud contacts arranged in 2 rows, providing a robust interconnection solution.



The connector is panel mounted and terminated via IDC (Insulation Displacement Connection), simplifying assembly by eliminating the need for individual wire stripping and soldering. Contacts are finished with 0.76 µm gold for reliable conductivity and corrosion resistance. The housing includes an unthreaded flange feature for secure panel attachment.



This receptacle is shielded to help reduce electromagnetic interference (EMI), making it suitable for applications requiring signal integrity. It is part of the CHAMP series from TE Connectivity and is packaged in quantities of 600 pieces per box.

5554349-1 Quick Information

Product Type: Centronics Connector
Canonical Name: TE Connectivity 5554349-1 Centronics Connector, 24 Position Receptacle, Panel Mount, IDC Termination
Subcategory: Centronics Connectors

5554349-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5554349-1 Features

  • 24-position Centronics receptacle with 2 rows.
  • Panel mount with IDC termination.
  • Gold contact finish 0.76 µm thickness.
  • Shielded design for EMI reduction.
  • Unthreaded flange for panel mounting.

5554349-1 Applications

  • Parallel printer and peripheral connections.
  • Industrial control and data interfaces.
  • Shielded cable assemblies for EMI protection.
  • Panel-mounted I/O in computing equipment.

5554349-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 5554349-1 have?

The connector has 24 positions arranged in 2 rows.

What is the mounting type for this connector?

It is a panel mount connector with an unthreaded flange feature.

What termination method does the 5554349-1 use?

It uses IDC (Insulation Displacement Connection) termination.

Is the 5554349-1 connector shielded?

Yes, the connector features a shielded design.

What is the contact finish on the 5554349-1?

The contacts have a gold finish with a thickness of 0.76 µm.
