| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

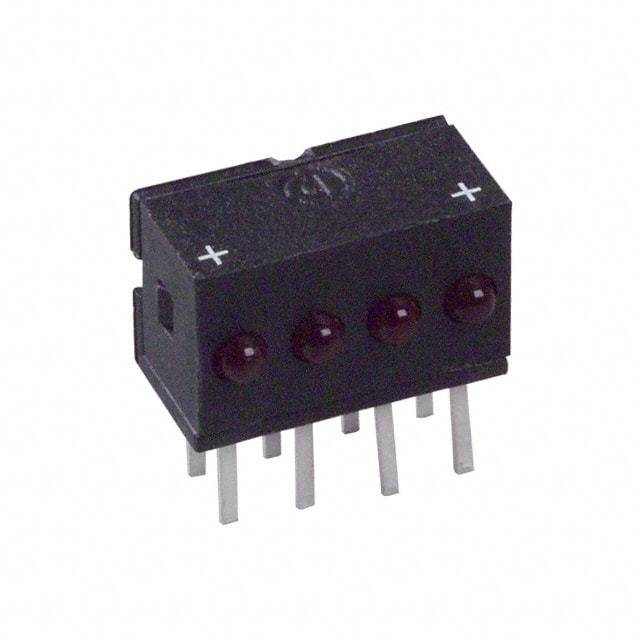

This Dialight 5554003 is a red LED circuit board indicator featuring a 2mm diameter lens with a domed top. It is configured as 4 wide LEDs, each emitting red light with a peak wavelength of 650nm. The indicator operates at a nominal voltage of 5V and requires a current of 6mA, providing a luminous intensity of 1.9mcd with a viewing angle of 40 degrees.
The component is designed for through-hole, right-angle mounting, making it suitable for direct insertion onto printed circuit boards. Its clear lens ensures optimal light diffusion. The LED is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under standard conditions.
This LED indicator is ideal for applications requiring visual status indication on circuit boards, such as power status, activity lights, or diagnostic indicators in electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the Dialight 5554003 LED is 5V.
The current rating of the Dialight 5554003 LED is 6mA.
The Dialight 5554003 LED is red.
The luminous intensity of the Dialight 5554003 LED is 1.9mcd.
The Dialight 5554003 LED is mounted through-hole, right-angle.
The Dialight 5554003 LED is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Dialight 5554003 LED is 1 Unlimited.
