| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| ELV | |
| Flange Feature | |
| Halogen Content | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Solder Process Capability | |
| Termination | |
| Termination Style |

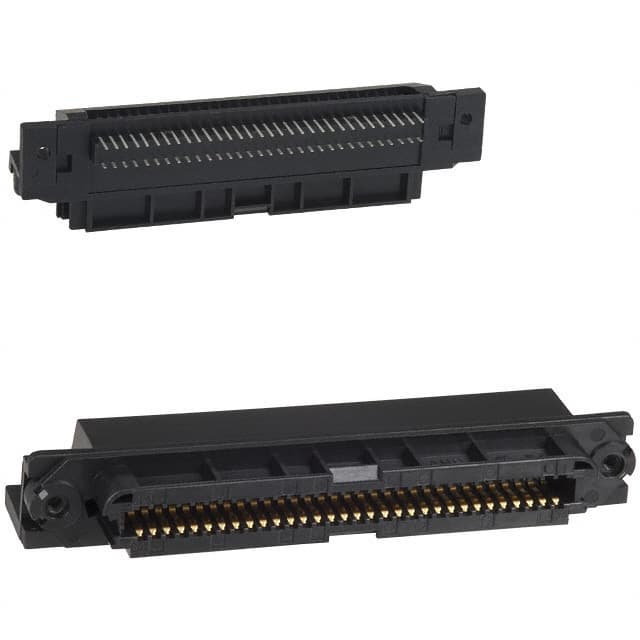

The 5552744-1 is a 64-position, 2-row Centronics receptacle featuring outer shroud contacts. It offers a right angle solder termination for through-hole PCB mounting and includes tapped threaded flanges (4-40) to enable secure panel mount attachment. Contact finish is gold with 30µin thickness (0.76µm) ensuring reliable signal transmission. The connector is wave solder capable to 265°C, supporting standard high-temperature assembly processes.
Compliance has been verified from TE Connectivity's statement: RoHS Compliant (2011/65/EU), ELV Compliant, REACH SVHC Free, and China RoHS compliant. Note that this component is not low halogen (contains Br or Cl > 900 ppm). The part is rated MSL 1 (unlimited floor life) according to available data.
Designed for dense parallel interface applications, the 5552744-1 fits within the Centronics connector category commonly used in computer peripheral and office equipment interconnects. The right angle profile saves board space when mounting near edge of PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.80 | $16.80 |
| 10+ | $14.28 | $14.28 |
| 30+ | $13.22 | $13.22 |
| 60+ | $12.59 | $12.59 |
| 120+ | $11.98 | $11.98 |
| 270+ | $11.32 | $11.32 |
| 510+ | $10.82 | $10.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
64 positions in 2 rows.
Panel mount, through hole, right angle.
Gold with 30µin thickness (0.76µm).
Yes, tapped threaded flanges (4-40).
Wave solder capable to 265°C.
Yes, compliant with EU RoHS Directive 2011/65/EU.
No, it does not contain REACH SVHC.
