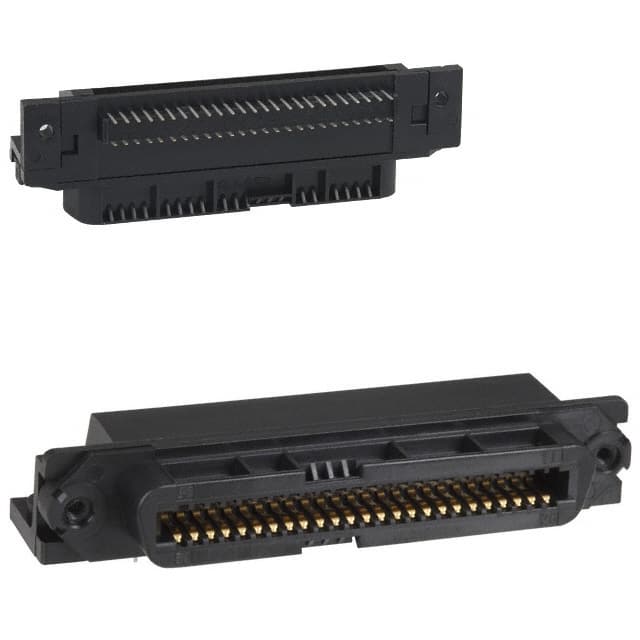

5552725-1 Centronics receptacle connector with 50 positions in 2 rows. Right angle through hole solder termination, gold contacts with 30.0µin plating.
Mfr Part #:

5552725-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Centronics receptacle connector with 50 positions in 2 rows. Right angle through hole solder termination, gold contacts with 30.0µin plating.
✓ Total Stock: 40 pcs
$ Price Range: $12.62 - $18.72

5552725-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5552725-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Flange Feature
Mounting Type
Number of Positions
Number of Rows
Tape & Reel
Termination
View Similar Products (0)

5552725-1 Description

Short technical summary and product information.

The TE Connectivity 5552725-1 is a 50-position Centronics receptacle connector featuring outer shroud contacts. It has 2 rows of contacts with gold plating (30.0µin / 0.76µm) for reliable signal integrity.



This connector is designed for panel mount and through hole right angle installation, using solder termination. The flange features tapped threaded inserts (4-40) for secure panel mounting.



Applications include parallel interface cabling, printer connections, and other Centronics-standard equipment requiring a robust shielded connector solution. The right angle orientation saves board space in compact designs.

5552725-1 Quick Information

Product Type: Centronics Connector
Canonical Name: 5552725-1 TE Connectivity Centronics Receptacle Connector, 50 Positions, Right Angle, Solder
Subcategory: Centronics Connector

5552725-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5552725-1 Estimated Pricing

Qty Low High
1+ $18.72 $18.72
10+ $16.22 $16.22
25+ $15.38 $15.38
40+ $15.15 $15.15
120+ $13.44 $13.44
280+ $12.62 $12.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

5552725-1 Features

  • 50-position Centronics receptacle connector.
  • Right angle through hole solder mounting.
  • Gold-plated contacts for signal integrity.
  • Panel mount with 4-40 threaded flange.
  • 2-row outer shroud contact design.

5552725-1 Applications

  • Parallel printer and Centronics cabling.
  • Industrial equipment interface applications.
  • Data communication panel connections.
  • Right angle board-to-cable connections.

5552725-1 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the 5552725-1 connector have?

The connector has 50 positions arranged in 2 rows.

What mounting type does the 5552725-1 use?

It mounts via panel mount, through hole, right angle with solder termination.

What is the contact finish on this connector?

Contacts are gold plated with a thickness of 30.0µin (0.76µm).

Does the 5552725-1 have a flange for panel mounting?

Yes, it features a tapped, threaded flange with 4-40 hardware.
