| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Forward Voltage | |
| Housing Flammability Rating | |
| Housing Material | |
| LED Safety | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Oxygen Index | |
| Solderability | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

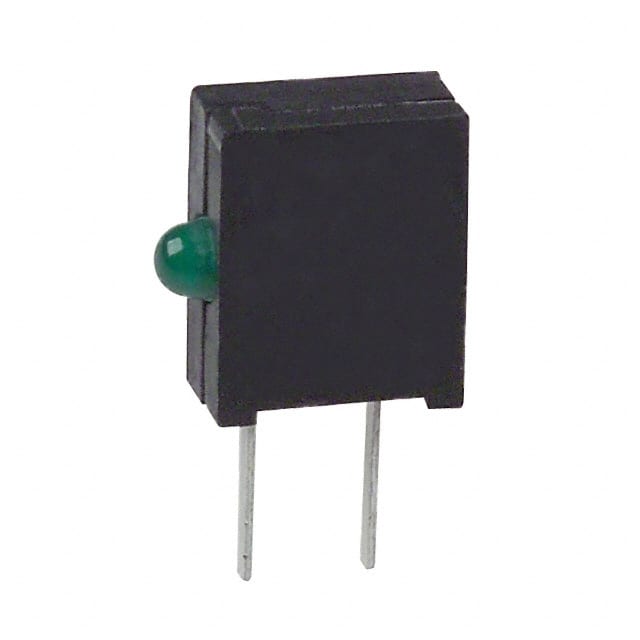

The Dialight 5552303 is a single, green LED designed for circuit board indication. It operates at a typical forward voltage of 2.4V and requires a typical current of 4.7mA, producing a luminous intensity of 2.5mcd with a 40° viewing angle.
This component features a through-hole, right-angle mounting type, making it suitable for direct PCB integration. The lens is round with a domed top and is clear, with a diameter of 2.00mm. The housing is constructed from PBT material and is rated UL 94 V-0 for flammability.
Designed for reliability, the LED is safe for direct viewing per IEC 825-1 and EN-60825-1 standards. Solderability is compliant with MIL-STD-202F, method 208F. The oxygen index of the housing material is 31.5%.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5552303 LED is green.
The typical luminous intensity of the 5552303 LED is 2.5mcd.
The operating voltage for the Dialight 5552303 LED is 5V.
The Dialight 5552303 LED is mounted through hole, at a right angle.
The viewing angle of the 5552303 LED is typically 40 degrees.
