| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Voltage Rating |

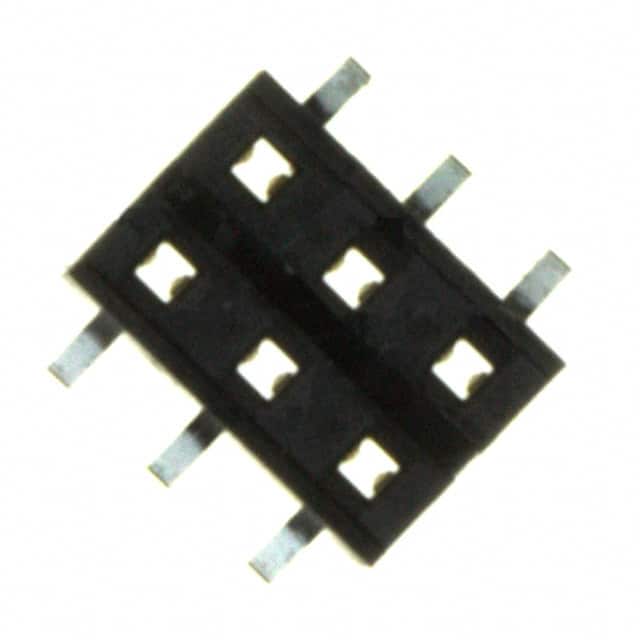

The 55508-106LF is a 6 position, 2 row, female socket receptacle from the Minitek® 2.00mm series by Amphenol ICC. It uses a push-pull fastening type and surface mount solder termination for secure board-to-board connections. The insulation is black with a flammability rating of UL94 V-0, and the operating temperature range is -55°C to 125°C. Contact finish is tin with a thickness of 0.76µm, and the pitch is 2.00mm with a row spacing of 2.00mm. Current rating is 2A and voltage rating is 200V. Packaging is tube.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.86 | $1.86 |
| 10+ | $1.58 | $1.58 |
| 100+ | $1.34 | $1.34 |
| 500+ | $1.20 | $1.20 |
| 1,000+ | $1.14 | $1.14 |
| 5,000+ | $1.02 | $1.02 |
| 10,000+ | $0.97 | $0.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 6 positions, all loaded, in 2 rows.
The pitch is 2.00mm (0.079").
The current rating is 2A.
The voltage rating is 200V.
It is a surface mount connector with solder termination.
The operating temperature ranges from -55°C to 125°C.
The contact finish is tin with a thickness of 0.76µm.
